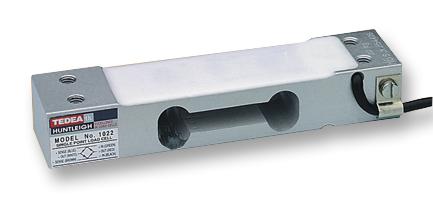

TEDEA HUNTLEIGH - 1022M-3M-F-106 - Load Cell, Model 1022, 3 kg, Single Point, Aluminium, 10 Vdc, IP66
- Load Capacity: 3kg
- Supply Voltage: 10VDC
- Operating Temperature Min: -20°C
- Operating Temperature Max: 70°C
- Cell Output mV / V: 2
- Product Range: Model 1022
- Carrying Capacity: 3kg
- Depth: 22mm
- External Depth: 22mm
- External Length / Height: 10mm
- External Width: 25mm
- Height: 10mm
- IP / NEMA Rating: IP66
- Input Impedance: 415ohm
- Lead Length: 0.5m
- Length: 130mm
- Operating Temperature Range: -20°C to +70°C
- Output: Unbalanced Bridge
- Output Impedance: 350ohm
- Output Voltage: 2mV
- Transducer Function: Load Cell
