103-311-04 LED, Pcb, 3mm, Yellow Marl

MARLSKU:103-311-04 Bestelcode:9737294

Prijs:
Actie prijs€3,66

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (3097 units)

Documenten en downloads

Omschrijving

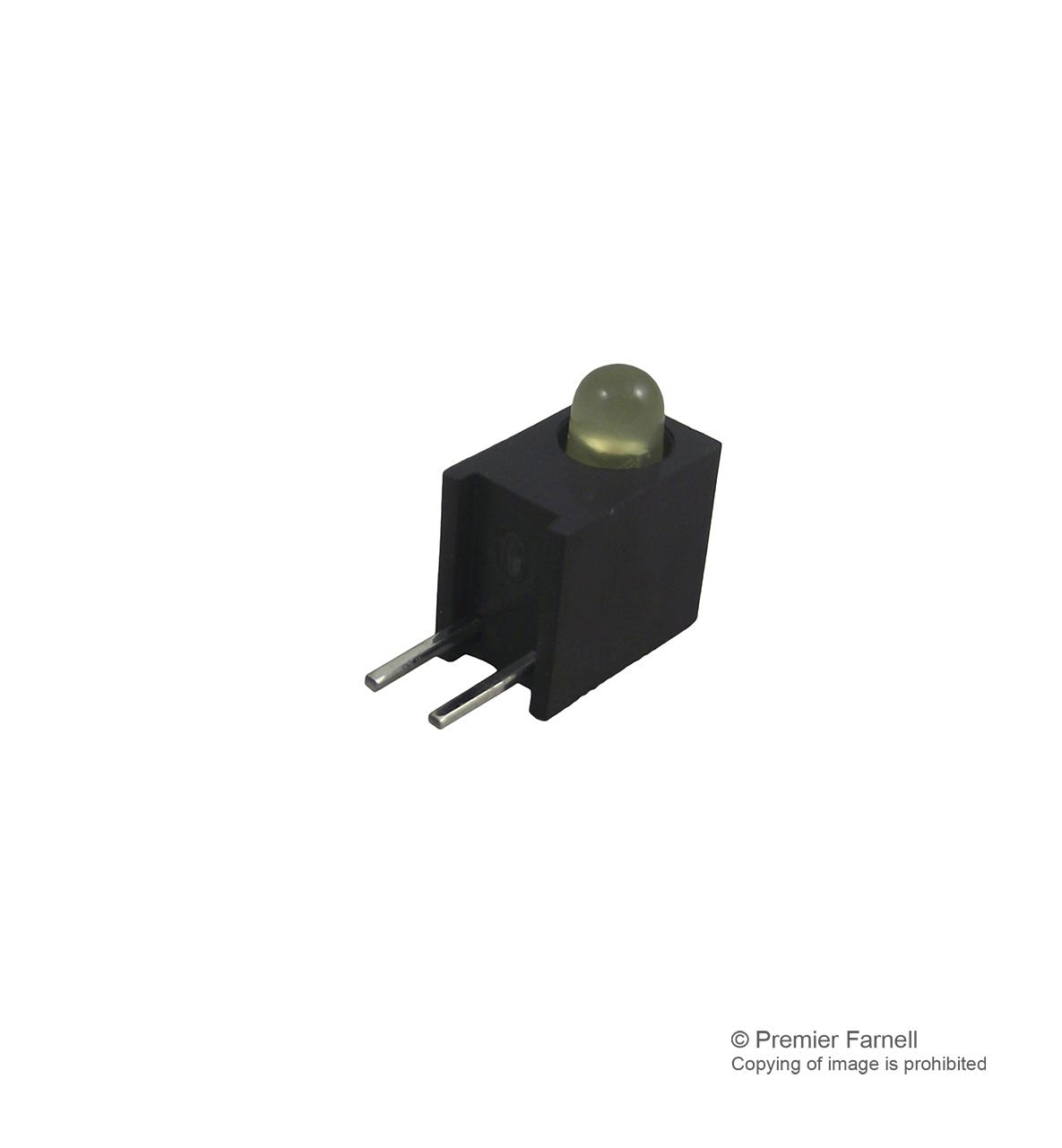

MARL - 103-311-04 - Circuit Board Indicator, Yellow, 1 LEDs, Through Hole, T-1 (3mm), 20 mA, 20 mcd

  • LED Colour: Yellow
  • No. of LEDs: 1LEDs
  • LED Mounting: Through Hole
  • Bulb Size: T-1 (3mm)
  • Forward Current If: 20mA
  • Luminous Intensity: 20mcd
  • Forward Voltage: 2.1V
  • Viewing Angle: 30°
  • Height: 6.2mm
  • Width: 4mm
  • Product Range: Marl - 103 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Current If Luminous Intensity: 20mA
  • External Depth: 5.2mm
  • External Length / Height: 6.2mm
  • External Width: 4mm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.1V
  • LED / Lamp Size: 3mm / T-1
  • LED Type: Standard
  • Lead Cross-section Depth: 0.5mm
  • Lead Cross-section Width: 0.5mm
  • Lead Length: 21mm
  • Lead Spacing: 2.54mm
  • Lens Shape: Round
  • Luminous Intensity Typ: 35mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • PIV Max: 3V
  • Peak Forward Current: 25mA
  • Peak Wavelength: 585nm
  • Voltage Vf Typ: 2.1VDC
  • Wavelength Typ: 590nm
