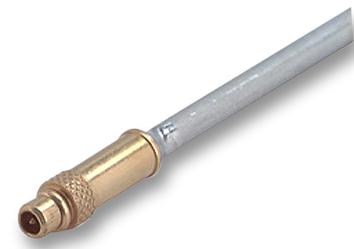

11 MMCX-50-1-1/111OE RF Coaxial, MMCX, Straight Plug, 50ohm Huber+SUHNER

HUBER+SUHNERSKU:11 MMCX-50-1-1/111OE Bestelcode:4163436

Prijs:
Actie prijs€13,55

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2226 units)

Documenten en downloads

Omschrijving

HUBER+SUHNER - 11 MMCX-50-1-1/111OE - RF / Coaxial Connector, MMCX Coaxial, Straight Plug, Crimp, 50 ohm, RG178B/U, RG196A/U, RG196A/U

  • Connector Type: MMCX Coaxial
  • Connector Body Style: Straight Plug
  • Coaxial Termination: Crimp
  • Impedance: 50ohm
  • Coaxial Cable Types: RG178B/U, RG196A/U, RG196A/U
  • Contact Material: Beryllium Copper
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 6GHz
  • Connector Mounting: Cable Mount
  • Product Range: -
  • SVHC: No SVHC (17-Dec-2015)
  • Body Plating: Gold
  • Centre Contact Resistance: 5mohm
  • Coaxial Type: RG178
  • Connector Mounting Orientation: Cable
  • Contact Resistance: 2.5mohm
  • Dielectric Material: PTFE/PFA
  • Insulation Resistance: 10000Mohm
  • Material: Brass
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 6GHz
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Termination Method: Crimp
  • VSWR: 1.03
  • Withstand Voltage: 500V
  • Working Voltage: 170V
