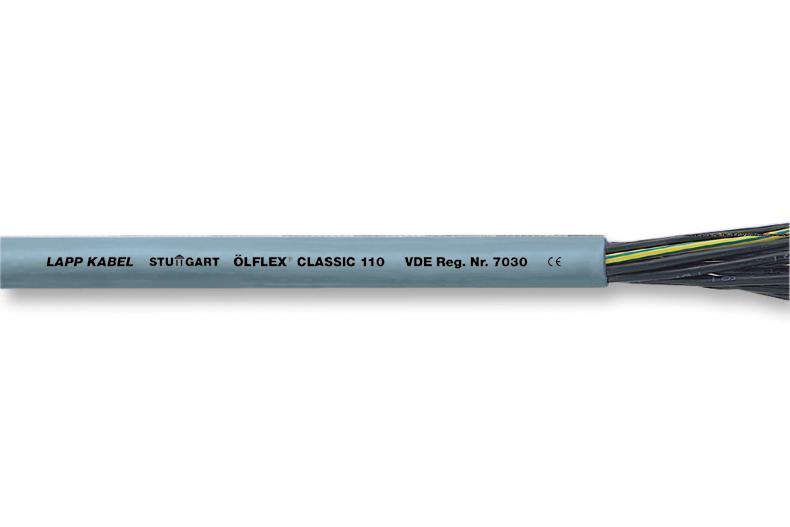

LAPP KABEL - 1119207 - Multicore Cable, Ölflex® YY, Per M, Unscreened, 7 Core, 18 AWG, 1 mm²
- Cable Shielding: Unscreened
- No. of Cores: 7Core
- Wire Gauge: 18AWG
- Conductor Area CSA: 1mm²
- Reel Length (Imperial): -
- Reel Length (Metric): -
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 32 x 0.2mm
- Conductor Material: Copper
- Jacket Material: PVC
- External Diameter: 8mm
- Voltage Rating: 500V
- Product Range: YY Series
- SVHC: No SVHC (15-Jan-2019)
- Bend Radius Min: 15mm
- Cable Type: Unshielded
- Conductor Make-up: 32 / 0.2mm
- Core-Earth / Core-Core Voltage Rating: 300/500 V
- Flexing Temperature Max: 70°C
- Flexing Temperature Min: -5°C
- Installed Bend Radius Min: 4
- Insulation Resistance: 20Gohm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -5°C
- Outer Diameter: 8mm
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: PVC
- Test Voltage: 4000V
- Voltage Rating VAC: 500V
