113-311-01 LED, Pcb, 3mm, Yellow Marl

MARLSKU:113-311-01 Bestelcode:9739238

Prijs:
Actie prijs€3,27

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (568 units)

Documenten en downloads

Omschrijving

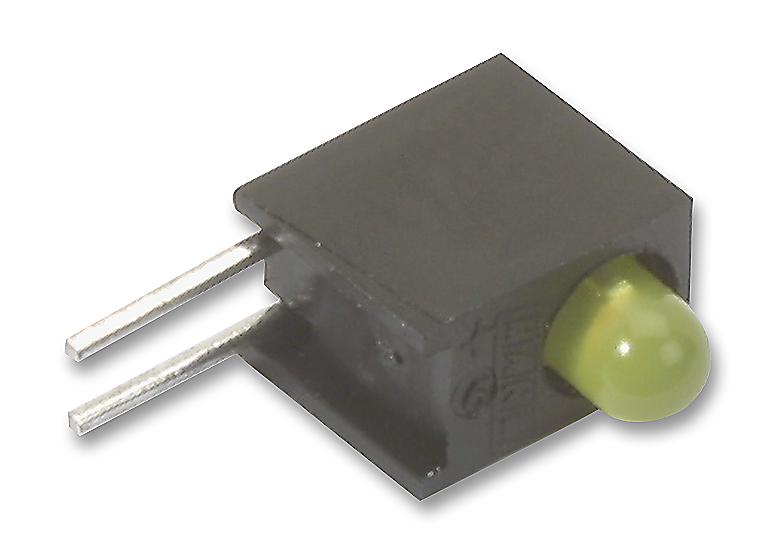

MARL - 113-311-01 - Circuit Board Indicator, Yellow, 1 LEDs, Through Hole, T-1 (3mm), 2 mA, 20 mcd

  • LED Colour: Yellow
  • No. of LEDs: 1LEDs
  • LED Mounting: Through Hole
  • Bulb Size: T-1 (3mm)
  • Forward Current If: 2mA
  • Luminous Intensity: 20mcd
  • Forward Voltage: 2.1V
  • Viewing Angle: -
  • Height: 7.3mm
  • Width: 37mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Current If Luminous Intensity: 2mA
  • Display Size: 6.3mm x 8.3mm
  • External Depth: 6.3mm
  • External Length / Height: 8.3mm
  • External Width: 4.6mm
  • Forward Current If Max: 2mA
  • Forward Voltage VF Max: 1.9V
  • LED / Lamp Size: 3mm / T-1
  • LED Configuration: Array
  • LED Type: Standard
  • Lead Cross-section Depth: 0.5mm
  • Lead Cross-section Width: 0.5mm
  • Lead Length: 5mm
  • Lead Spacing: 2.54mm
  • Lens Shape: Round
  • Luminous Intensity Typ: 2mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +80°C
  • PIV Max: 5V
  • Peak Wavelength: 590nm
  • Voltage Vf Typ: 1.9V
  • Wavelength Typ: 590nm
