1.15.106.503/1400 Switch, Pushbutton, Mom, Illuminated Rafi

RAFISKU:1.15.106.503/1400 Bestelcode:9927611

Prijs:
Actie prijs€36,04

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1617 units)

Documenten en downloads

Omschrijving

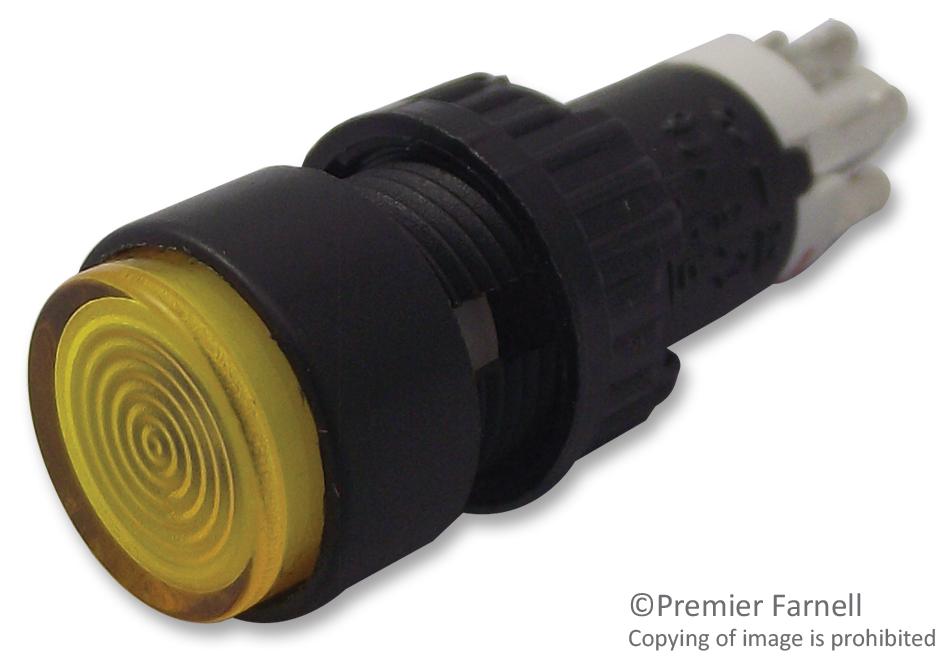

RAFI - 1.15.106.503/1400 - Industrial Pushbutton Switch, 9.1 mm, SPST-NO, SPST-NC, Momentary, Round, Transparent

  • Product Range: -
  • Contact Configuration: SPST-NO, SPST-NC
  • Switch Operation: On-Off
  • Contact Current Max: 500mA
  • Contact Voltage AC Nom: -
  • Illumination Colour: Yellow
  • Contact Voltage DC Nom: -
  • Switch Terminals: Solder Lug
  • Actuator / Cap Colour: Transparent
  • Contact Current AC Max: 500mA
  • Contact Current DC Max: 500mA
  • Contact Voltage VAC: 24V
  • Contact Voltage VDC: 24V
  • External Depth: 25mm
  • External Length / Height: 7mm
  • IP Rating: IP40
  • Operating Force: 5N
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -25°C
  • Panel Cutout Diameter: 9.1mm
  • Pushbutton Actuator Style: Round
  • Pushbutton Switch Type: Standard
  • Switch Mounting: Panel
