11MCX-50-2-19/111NE RF Coaxial, MCX, Straight Plug, 50ohm Huber+SUHNER

HUBER+SUHNERSKU:11MCX-50-2-19/111NE Bestelcode:8558221

Prijs:
Actie prijs€15,58

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (9 units)

Documenten en downloads

Omschrijving

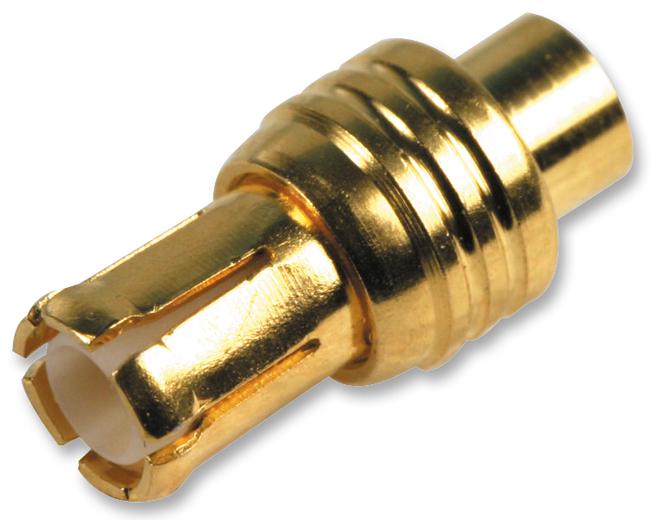

HUBER+SUHNER - 11"MCX-50-2-19/111"NE - RF / Coaxial Connector, MCX Coaxial, Straight Plug, Solder, 50 ohm, EZ 86, TP M17, Brass

  • Connector Type: MCX Coaxial
  • Connector Body Style: Straight Plug
  • Coaxial Termination: Solder
  • Impedance: 50ohm
  • Coaxial Cable Types: EZ 86, TP M17
  • Contact Material: Brass
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 6GHz
  • Connector Mounting: Cable Mount
  • Product Range: -
  • SVHC: No SVHC (17-Dec-2015)
  • Body Plating: Sucopro, Sucoplate
  • Coaxial Type: RG405
  • Connector Mounting Orientation: Cable
  • Dielectric Material: PTFE/PFA
  • Material: Brass
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 6GHz
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Termination Method: Solder
