1206L025YR Fuse, Resettable, 1206, 16V, 250mA LITTELFUSE

LITTELFUSESKU:1206L025YR Bestelcode:1596990

Prijs:
Actie prijs€0,66

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (17423 units)

Documenten en downloads

Omschrijving

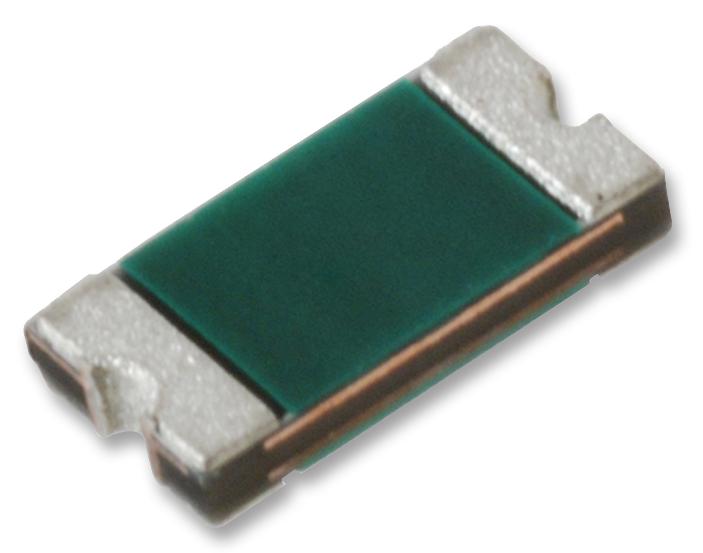

LITTELFUSE - 1206L025YR - Resettable Fuse, PPTC, 1206 (3216 Metric), POLYFUSE 1206L, 16 VDC, 250 mA, 500 mA, 0.08 s

  • Thermistor Mounting: SMD
  • Product Range: POLYFUSE 1206L Series
  • Holding Current: 250mA
  • Tripping Current: 500mA
  • Voltage Rating: 16VDC
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • Approval Bodies: TUV
  • Approval Category: UL Recognised
  • Carrying Current Max: 100A
  • Current Max: 100A
  • External Depth: 1.8mm
  • External Length / Height: 1mm
  • External Width: 3.4mm
  • Holding Current Max Ih: 0.25mA
  • Initial Resistance Max: 2.3ohm
  • Initial Resistance Min: 0.55ohm
  • Operating Voltage: 16V
  • PTC Fuse Case Style: 1206 [3216 Metric]
  • Power Dissipation Pd: 0.6W
  • Resistance: 1.4ohm
  • Termination Type: Surface Mount Device
  • Thermistor Type: PTC
