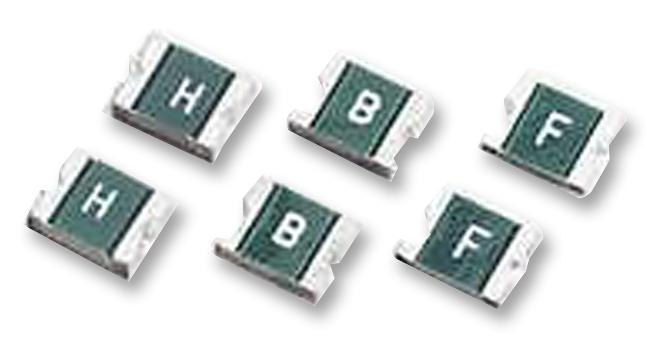

1210L020WR Fuse, Resettable, 1210, 30V, 200mA LITTELFUSE

LITTELFUSESKU:1210L020WR Bestelcode:1596997

Prijs:
Actie prijs€0,57

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (17138 units)

Documenten en downloads

Omschrijving

LITTELFUSE - 1210L020WR - Resettable Fuse, PPTC, 1210 (3225 Metric), POLYFUSE 1210L, 30 VDC, 200 mA, 400 mA, 0.02 s

  • Thermistor Mounting: SMD
  • Product Range: POLYFUSE 1210L Series
  • Holding Current: 200mA
  • Tripping Current: 400mA
  • Voltage Rating: 30VDC
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • Approval Bodies: TUV
  • Approval Category: UL Recognised
  • Carrying Current Max: 10A
  • Current Max: 10A
  • External Depth: 2.8mm
  • External Length / Height: 1mm
  • External Width: 3.43mm
  • Holding Current Max Ih: 200mA
  • Initial Resistance Max: 5ohm
  • Initial Resistance Min: 0.8ohm
  • Operating Voltage: 30V
  • PTC Fuse Case Style: 1210 [3225 Metric]
  • Power Dissipation Pd: 0.6W
  • Resistance: 2.9ohm
  • Termination Type: Surface Mount Device
  • Thermistor Type: PTC
