1241.1104.7093 Switch, SPNO, Red, 0.08A, 24Vdc, Solder Schurter

SCHURTERSKU:1241.1104.7093 Bestelcode:150242

Prijs:
Actie prijs€12,94

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (58 units)

Documenten en downloads

Omschrijving

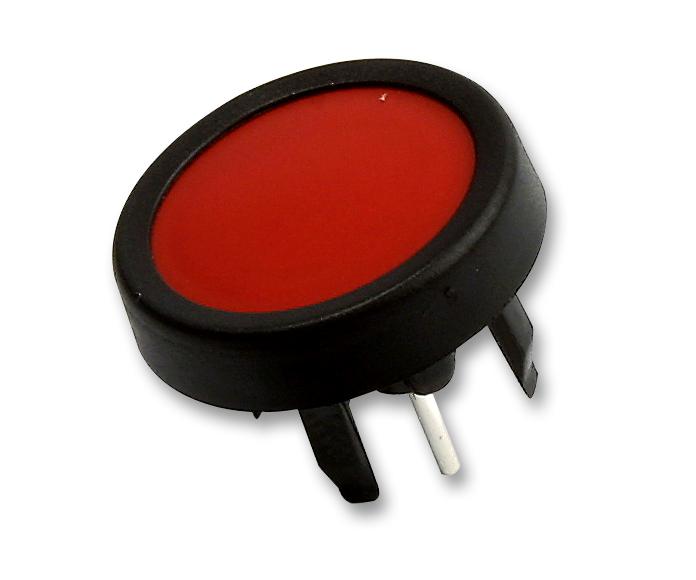

SCHURTER - 1241.1104.7093 - Tactile Switch, Top Actuated, Panel Mount, Round Button, 305 gf, 125mA at 48VDC

  • Product Range: -
  • Actuator Orientation: Top Actuated
  • Switch Mounting: Panel
  • Actuator Style: Round Button
  • Actuating Force: 305gf
  • Contact Rating: 80mA at 24VDC
  • Switch Dimensions (L x W): 18mm Dia
  • IP Rating: IP65
  • Illumination: Non Illuminated
  • SVHC: No SVHC (15-Jan-2019)
  • Actuator / Cap Colour: Red
  • Bezel Diameter: 18mm
  • Contact Configuration: SPST-NO
  • Contact Current Max: 80mA
  • Contact Resistance: 50mohm
  • Contact Voltage DC Nom: 24V
  • No. of Mechanical Operations: 1000000
  • Operating Force: 3N
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -25°C
  • Switch Operation: Off-(On)
  • Switch Terminals: Solder
