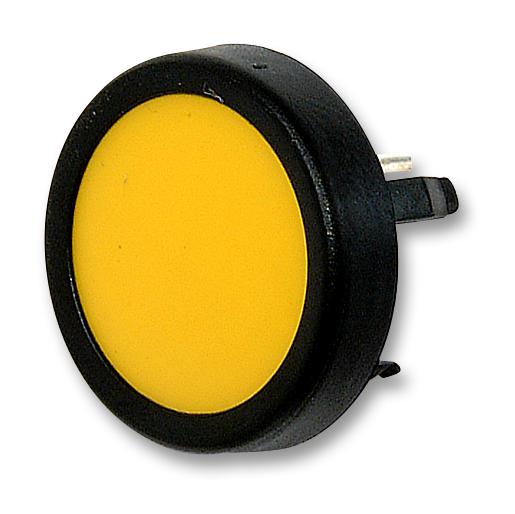

SCHURTER - 12411104791 - Tactile Switch, MCS18, Top Actuated, Through Hole, Round Button, 300 gf, 125mA at 48VDC
- Product Range: MCS18 Series
- Actuator Orientation: Top Actuated
- Switch Mounting: Through Hole
- Actuator Style: Round Button
- Actuating Force: 300gf
- Contact Rating: 125mA at 48VDC
- Switch Dimensions (L x W): 18mm Dia
- IP Rating: -
- Illumination: Non Illuminated
- SVHC: No SVHC (27-Jun-2018)
- Actuation Type: Top
- Actuator / Cap Colour: Yellow
- Contact Configuration: SPST-NO
- Contact Current Max: 125mA
- Contact Voltage DC Nom: 48V
- Operating Force: 3N
- Operating Temperature Max: 60°C
- Operating Temperature Min: -25°C
- Panel Cutout Diameter: 13mm
- Switch Terminals: Solder
