1241.6834.1122000 Switch, VR, MSM22 La, Green, Ring Schurter

SCHURTERSKU:1241.6834.1122000 Bestelcode:1637581

Prijs:
Actie prijs€63,86

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (47 units)

Documenten en downloads

Omschrijving

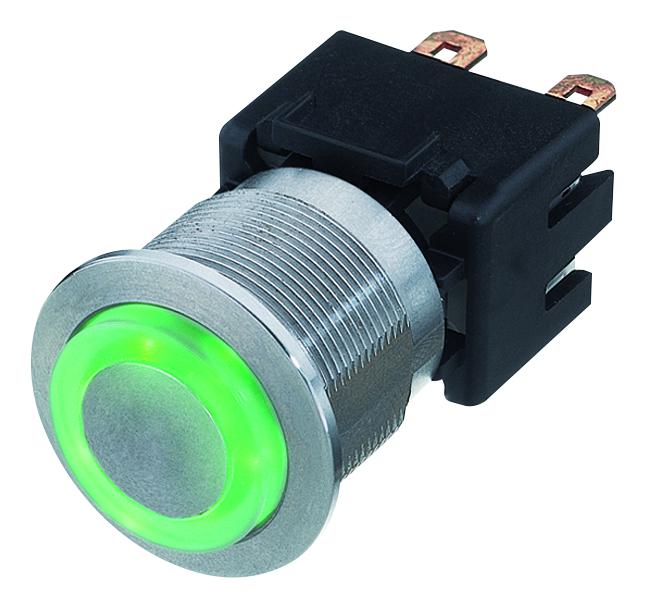

SCHURTER - 1241.6834.1122000 - Vandal Resistant Switch, MSM LA, 22.1 mm, DPST, On-Off, Round, Natural

  • Product Range: MSM LA Series
  • Contact Configuration: DPST
  • Switch Operation: On-Off
  • Contact Current Max: 12A
  • Contact Voltage AC Nom: 250V
  • Illumination Colour: Green
  • Contact Voltage DC Nom: 30V
  • Switch Terminals: Quick Connect, Solder
  • SVHC: No SVHC (27-Jun-2018)
  • Actuator / Cap Colour: Natural
  • Contact Current AC Max: 12A
  • Contact Current DC Max: 12A
  • Contact Resistance Max: 100mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 125V
  • Contact Voltage VAC: 250V
  • Contact Voltage VDC: 30V
  • External Diameter: 25mm
  • IP / NEMA Rating: IP67
  • IP Rating: IP64
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 500VDC
  • LED Colour: Green
  • Material: Stainless Steel
  • No. of Electrical Operations: 50000
  • No. of Mechanical Operations: 150000
  • Operating Force: 10N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Panel Cutout Diameter: 22.1mm
  • Pushbutton Actuator Style: Round
  • Pushbutton Switch Type: Anti-Vandal
  • Single Flat Panel Cut-out Diameter: 21.15mm
  • Travel: 4.5mm
