1301.9318 Switch, SMD, Push, 8mm Schurter

SCHURTERSKU:1301.9318 Bestelcode:1217769

Prijs:
Actie prijs€0,50

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (5595 units)

Documenten en downloads

Omschrijving

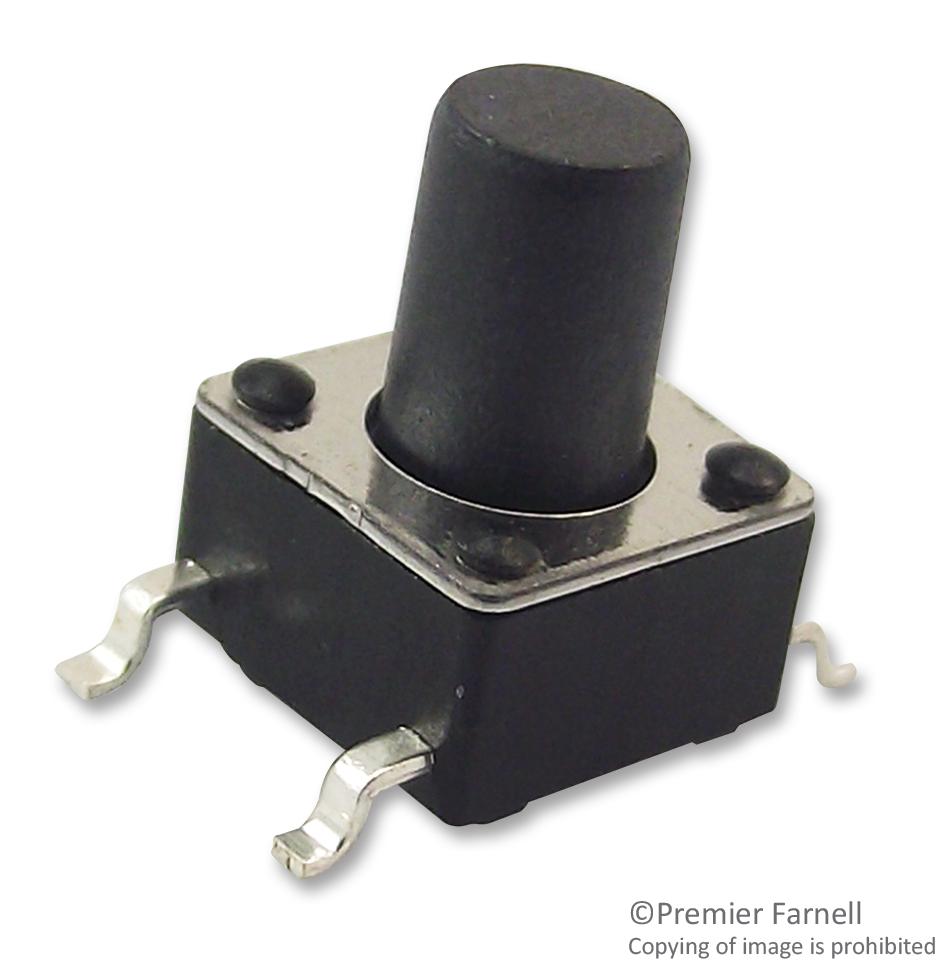

SCHURTER - 1301.9318 - Tactile Switch, LSH, Top Actuated, Surface Mount, Round Button, 160 gf, 50mA at 12VDC

  • Product Range: LSH Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: SMD
  • Actuator Style: Round Button
  • Actuating Force: 160gf
  • Contact Rating: 50mA at 12VDC
  • Switch Dimensions (L x W): 6mm x 6mm
  • IP Rating: IP40
  • Illumination: Non Illuminated
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Top
  • Contact Configuration: SPST-NO
  • Contact Current DC Max: 50mA
  • Contact Current Max: 50mA
  • Contact Voltage AC Max: 12V
  • Contact Voltage DC Max: 12V
  • Contact Voltage DC Nom: 12V
  • External Depth: 8mm
  • External Length / Height: 3.6mm
  • External Width: 6mm
  • Height Max: 8mm
  • Lead Spacing: 4.5mm
  • No. of Mechanical Operations: 100000
  • Operating Force: 1.6N
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -10°C
  • Switch Terminals: Solder
