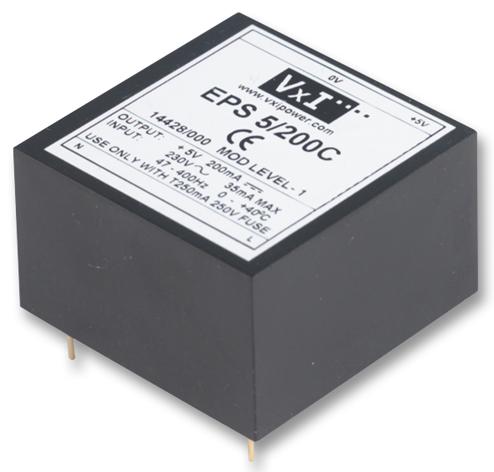

VXI POWER - 14428-000 - Linear Power Supply, ITE, 1 Outputs, 1 W, 5 V, 200 mA
- No. of Outputs: 1Outputs
- Output Power Max: 1W
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 200mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Input Voltage VAC: 207V AC to 253V AC
- Product Range: -
- Power Supply Output Type: Fixed
- Output Current - Output 3: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CE
- External Depth: 50mm
- External Length / Height: 30mm
- External Width: 50mm
- Height: 30mm
- Input Voltage AC Max: 253V
- Input Voltage AC Min: 207V
- Length: 50mm
- Operating Temperature Max: 40°C
- Operating Temperature Min: 0°C
- Output Ripple Voltage pk-pk: 10mV
- Power Supply Type: Linear
- Supply Frequency Max: 63Hz
- Supply Frequency Min: 47Hz
- Supply Voltage: 240V
- Supply Voltage Max: 250V
- Supply Voltage Min: 210V
- Supply Voltage Typ: 230V AC
- Width: 50mm
