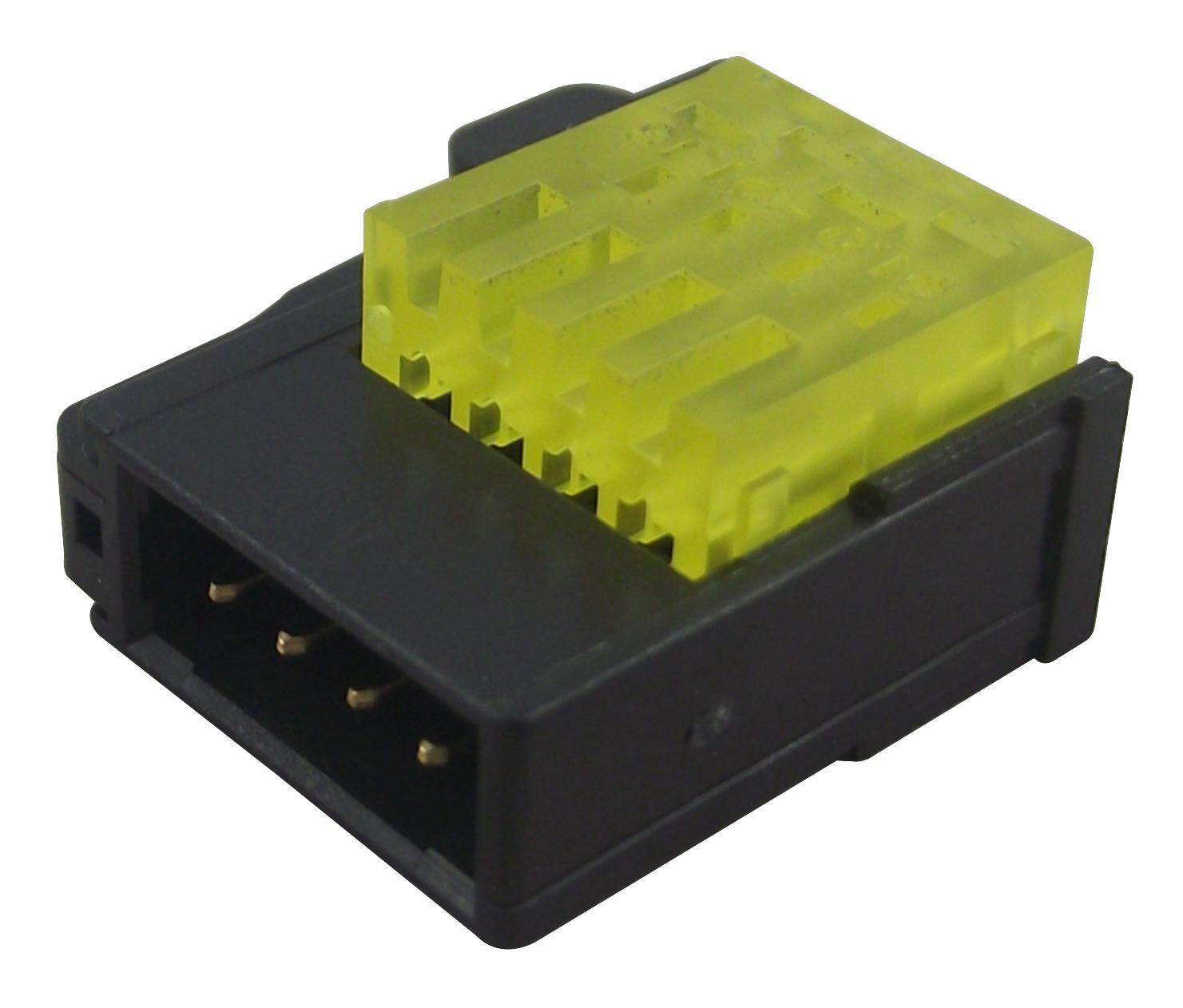

1473562-4 Plug, Yellow, 1-1.15mm Te Connectivity

TE CONNECTIVITYSKU:1473562-4 Bestelcode:9701958

Prijs:
Actie prijs€7,51

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1063 units)

Documenten en downloads

Omschrijving

TE CONNECTIVITY - 1473562-4 - Rectangular Power Connector, Yellow, 4 Contacts, RITS, Cable Mount, IDC / IDT, 2 mm, Plug

  • Pitch Spacing: 4mm
  • No. of Contacts: 4Contacts
  • Gender: Plug
  • Product Range: RITS Series
  • Contact Termination Type: IDC / IDT
  • No. of Rows: 1Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Copper
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: UL
  • Colour: Yellow
  • Current Rating: 3A
  • De-mating Force: 0.1N
  • External Length / Height: 8.2mm
  • External Width: 16.1mm
  • Flammability Rating: UL94V-0
  • Insulation Diameter Max: 1.15mm
  • Insulation Diameter Min: 1mm
  • Length: 18.5mm
  • Material: PBT / Polycarbonate
  • Mating Force: 1.5N
  • Voltage Rating VAC: 32V
  • Wire Area Size Max: 0.3mm²
  • Wire Area Size Min: 0.2mm²
  • Wire Size AWG Max: 22AWG
  • Wire Size AWG Min: 24AWG
  • Withstand Voltage: 500V
