Omschrijving

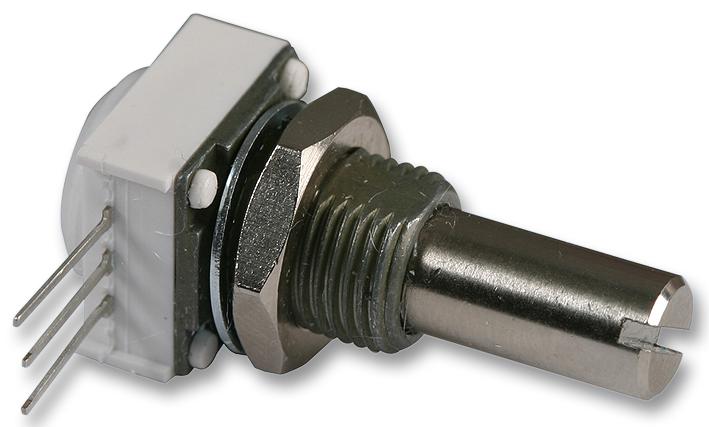

VISHAY - 14910F0GJSX10103KA - Rotary Potentiometer, Cermet, 10 kohm, 1 Turns, Linear, 1 W, ± 10%, 149
- Track Resistance: 10kohm
- No. of Turns: 1Turns
- Track Taper: Linear
- Power Rating: 1W
- Resistance Tolerance: ± 10%
- Product Range: 149 Series
- Potentiometer Mounting: -
- Shaft Diameter: 6.35mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 22.22mm
- Operating Temperature Max: 150°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +150°C
- Resistance: 10kohm
- Resistor Element Material: Cermet
- Temperature Coefficient: ± 150ppm/°C
- Termination Type: Radial Leaded
- Voltage Rating: 350VAC
