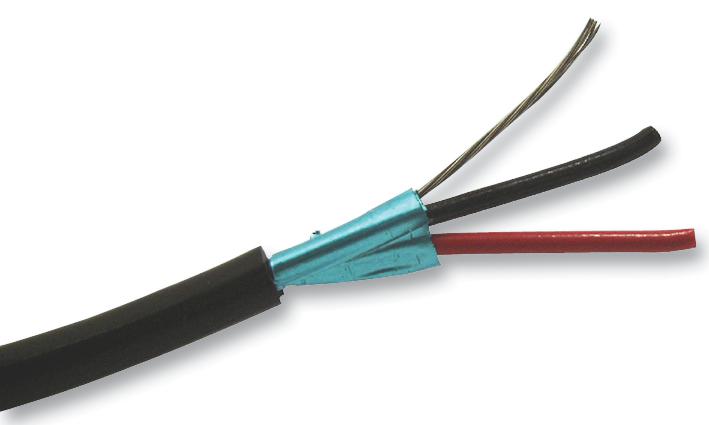

BELDEN - 1503A 010U1000 - Multipair Cable, Audio, Screened, 1 Pair, 22 AWG, 0.352 mm², 1000 ft, 304.8 m
- Cable Shielding: Screened
- No. of Pairs: 1 Pair
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.352mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 304.8m
- Jacket Colour: Black
- No. of Max Strands x Strand Size: 7 x 30mm
- Voltage Rating: 300V
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- External Diameter: 3.607mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Cable Type: Shielded
- Conductor Make-up: 7 / 30mm
- Core - Core Capacitance: 53pF/ft
- Core-Screen Capacitance: 97pF/ft
- Current Rating: 2.9A
- Flammability Rating: UL1666
- Impedance: 38ohm
- No. of Cores: 2Core
- Operating Temperature Max: 90°C
- Operating Temperature Min: -30°C
- Outer Diameter: 3.6mm
- Secondary Insulation Colour: Black
- Secondary Insulation Material: PVC
- Velocity of Propagation (%): 66%
- Voltage Rating VAC: 300V
- Wire Size: 22AWG
