1658525-3 Connector, IDC, Transition, 50WAY Amp - Te Connectivity

AMP - TE CONNECTIVITYSKU:1658525-3 Bestelcode:1298775

Prijs:
Actie prijs€8,37

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1273 units)

Documenten en downloads

Omschrijving

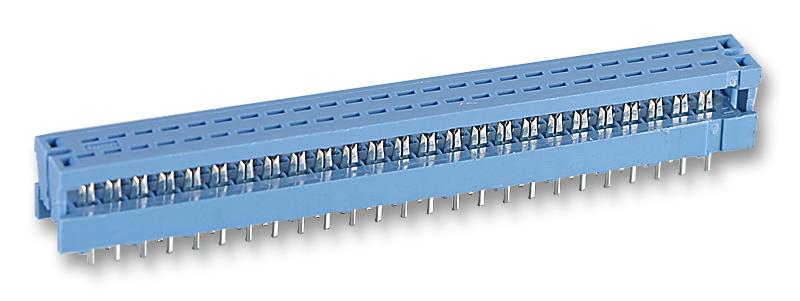

AMP - TE CONNECTIVITY - 1658525-3 - Pin Header, Transition, Wire-to-Board, 2.54 mm, 2 Rows, 50 Contacts, Through Hole Straight, 622

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 50Contacts
  • Gender: Plug
  • Product Range: 622 Series
  • Contact Termination Type: Solder
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Beryllium Copper
  • SVHC: No SVHC (15-Jan-2018)
  • Current Rating: 1A
  • External Depth: 7.11mm
  • External Length / Height: 6.5mm
  • Flammability Rating: UL94V-0
  • IDC Cable Pitch: 0.05"
  • Insulation Resistance: 1Gohm
  • Lead Length: 2.5mm
  • Material: Glass reinforced thermo plastic
  • No. of Mating Cycles: 200
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • PCB Hole Diameter: 0.9mm
  • Row Pitch: 2.54mm
  • Withstand Voltage: 500V
