16MMCX-50-2-1/111OE RF COAXIAL, MMCX, R/A PLUG, 50OHM HUBER+SUHNER
Ga met de muis over de afbeelding om in te zoomen Klik op de afbeelding om in te zomen
16MMCX-50-2-1/111OE RF COAXIAL, MMCX, R/A PLUG, 50OHM HUBER+SUHNER

16MMCX-50-2-1/111OE RF Coaxial, MMCX, R/A Plug, 50ohm Huber+SUHNER

HUBER+SUHNERSKU:16MMCX-50-2-1/111OE Bestelcode:8558426
Prijs:
€24,84

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

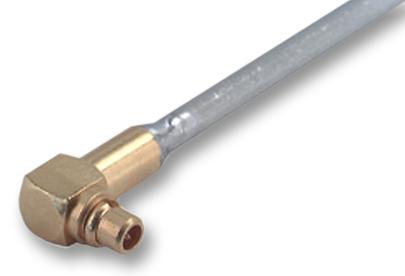

HUBER+SUHNER - 16"MMCX-50-2-1/111"OE - RF / Coaxial Connector, MMCX Coaxial, Right Angle Plug, Solder, 50 ohm, RG405, Bronze

  • Connector Type: MMCX Coaxial
  • Connector Body Style: Right Angle Plug
  • Coaxial Termination: Solder
  • Impedance: 50ohm
  • Coaxial Cable Types: RG405
  • Contact Material: Bronze
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 6GHz
  • Connector Mounting: Cable Mount
  • Product Range: -
  • SVHC: No SVHC (17-Dec-2015)
  • Body Plating: Gold
  • Centre Contact Resistance: 15mohm
  • Coaxial Type: RG405
  • Connector Mounting Orientation: Cable
  • Dielectric Material: PTFE
  • Insulation Resistance: 1000Mohm
  • Material: Brass
  • Operating Frequency Max: 6GHz
  • Outer Contact Resistance: 7.5mohm
  • Termination Method: Solder
  • VSWR: 1.10
