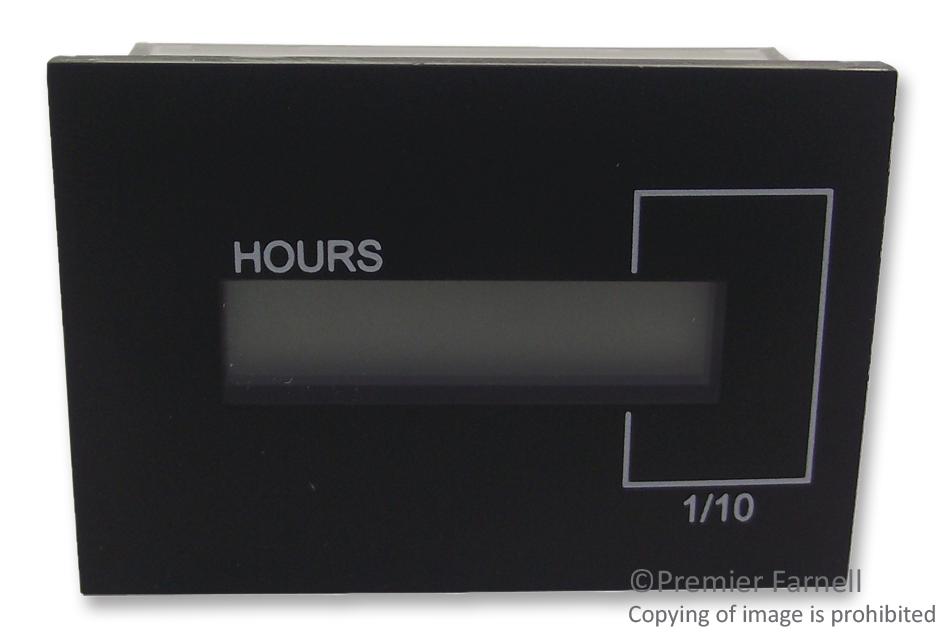

17470712B-01 Hour Meter, 700L, 100-230VAC Curtis (Instruments)

CURTIS (INSTRUMENTS)SKU:17470712B-01 Bestelcode:4954180

Prijs:
Actie prijs€46,98

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (96 units)

Documenten en downloads

Omschrijving

CURTIS INSTRUMENTS - 17470712B-01 - Panel Mount Timer, 100 VAC, 230 VAC, 0 s, 99999.9 h, 24.1 mm, 36.8 mm

  • Supply Voltage Min: 100VAC
  • Supply Voltage Max: 230VAC
  • Time Min: 0s
  • Time Max: 99999.9h
  • Panel Cutout Height: 24.1mm
  • Panel Cutout Width: 36.8mm
  • Product Range: 700 Series
  • SVHC: No SVHC (15-Jun-2015)
  • Accuracy %: 0.1%
  • Digit Height: 5mm
  • Display Technology: LCD
  • External Depth: 21mm
  • External Length / Height: 27.5mm
  • External Width: 36.6mm
  • Humidity: 95%
  • IP / NEMA Rating: IP50, IP65
  • Input Voltage Max: 230VAC
  • Input Voltage Min: 100VAC
  • Material: Polycarbonate/Polycarbonate
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Reset Time: 250ms
  • Socket Type: Molex 43045-0412 / 2 wire
  • Supply Voltage DC Max: 150VDC
  • Supply Voltage DC Min: 48VDC
  • Supply Voltage Range: 100V AC to 230V AC
  • Time Range: 0h to 99999.9h
