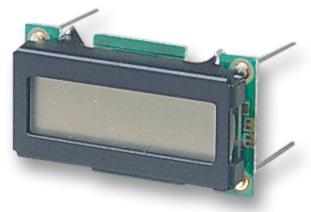

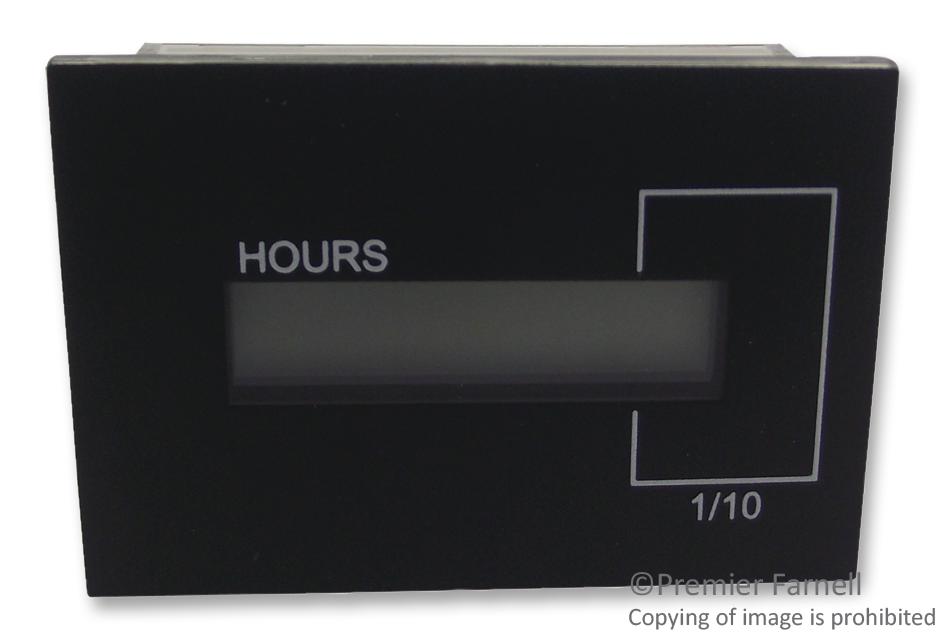

17470731B-01 Hour Meter, 701L, 12-48V Curtis (Instruments)

CURTIS (INSTRUMENTS)SKU:17470731B-01 Bestelcode:4954178

Prijs:
Actie prijs€57,73

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (53 units)

Documenten en downloads

Omschrijving

CURTIS INSTRUMENTS - 17470731B-01 - Panel Mount Timer, 12 VDC, 48 VDC, 0 s, 99999.9 h, 24.1 mm, 36.8 mm

  • Supply Voltage Min: 12VDC
  • Supply Voltage Max: 48VDC
  • Time Min: 0s
  • Time Max: 99999.9h
  • Panel Cutout Height: 24.1mm
  • Panel Cutout Width: 36.8mm
  • Product Range: 700 Series
  • SVHC: No SVHC (15-Jun-2015)
  • Accuracy %: 0.1%
  • Digit Height: 5mm
  • Display Technology: LCD
  • External Depth: 21mm
  • External Length / Height: 27.5mm
  • External Width: 40.6mm
  • Humidity: 95%
  • IP / NEMA Rating: IP50, IP65
  • Input Voltage Max: 48VDC
  • Input Voltage Min: 12VDC
  • Material: Polycarbonate/Polycarbonate
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Socket Type: Molex 43045-0412 / 3 wire
  • Supply Voltage Range: 12V DC to 48V DC
  • Time Range: 0h to 99999.9h
