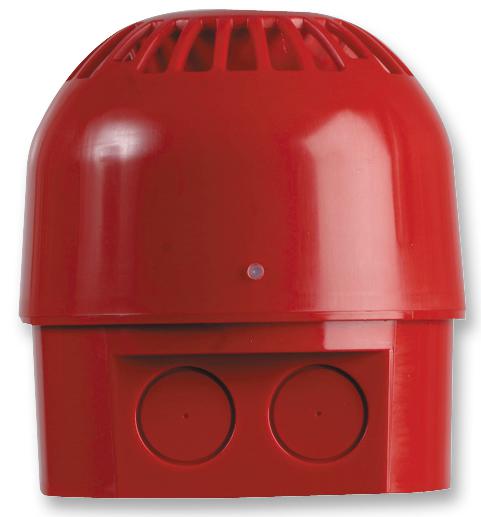

KLAXON - 18-980451 - Sounder, Multiple Tones, 110dB, 35VDC, 6mA, IP65, 100mm Ext. Depth
- Supply Voltage V AC: -
- Supply Voltage V DC: 35VDC
- Tones: Multiple Tones
- Sound Level SPL: 106dBA
- IP / NEMA Rating: IP65
- Product Range: -
- Resonant Frequency: -
- Current Consumption: 6mA
- External Depth: 100mm
- Operating Temperature Min: -25°C
- Operating Temperature Max: 70°C
- External Diameter: 100mm
- External Height: 104.1mm
- External Length / Height: 104.1mm
- Frequency: 2850Hz
- Frequency Response Max: 2.85kHz
- Frequency Response Min: 400Hz
- Input Current: 35mA
- Material: Flame Retardant Polycarbonate
- Operating Temperature Range: -25°C to +70°C
- Sound Level Distance: 1m
- Sound Level Max: 110dB
- Supply Voltage: 35VDC
- Supply Voltage DC Max: 35V
- Supply Voltage DC Min: 8V
- Supply Voltage Max: 35VDC
- Supply Voltage Min: 35VDC
- Supply Volts: 8V DC to 35V DC
- Transducer Function: Sounder
- Weight: 250g
