1812L075PR Fuse, Resettable, 1812, 13.2V, 750mA LITTELFUSE

LITTELFUSESKU:1812L075PR Bestelcode:1597003

Prijs:
Actie prijs€0,84

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1704 units)

Documenten en downloads

Omschrijving

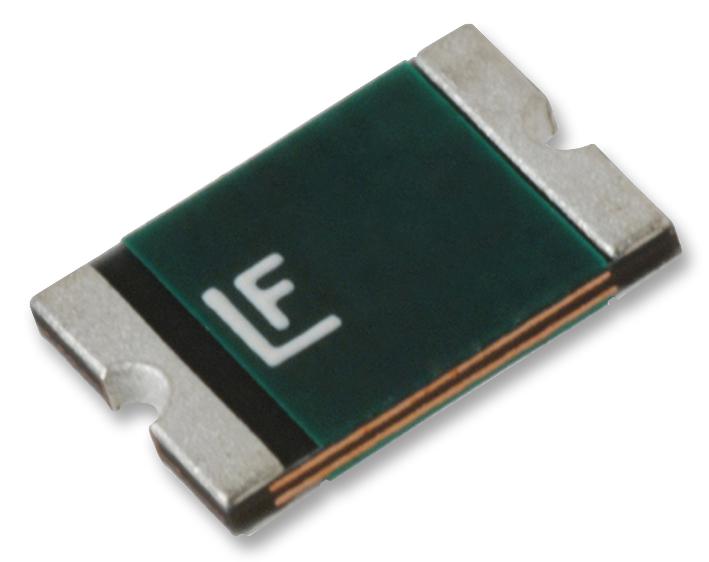

LITTELFUSE - 1812L075PR - Resettable Fuse, PPTC, 1812 (4532 Metric), POLYFUSE 1812L, 13.2 VDC, 750 mA, 1.5 A, 0.2 s

  • Thermistor Mounting: SMD
  • Product Range: POLYFUSE 1812L Series
  • Holding Current: 750mA
  • Tripping Current: 1.5A
  • Voltage Rating: 13.2VDC
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • Approval Bodies: TUV
  • Approval Category: UL Recognised
  • Carrying Current Max: 100A
  • External Depth: 3.41mm
  • External Length / Height: 0.75mm
  • External Width: 4.73mm
  • Holding Current Max Ih: 0.75A
  • Initial Resistance Max: 0.45ohm
  • Initial Resistance Min: 0.1ohm
  • Operating Voltage: 13.2V
  • PTC Fuse Case Style: 1812 [4532 Metric]
  • Power Dissipation Pd: 0.8W
  • Resistance: 0.26ohm
  • Termination Type: Surface Mount Device
  • Thermistor Type: PTC
