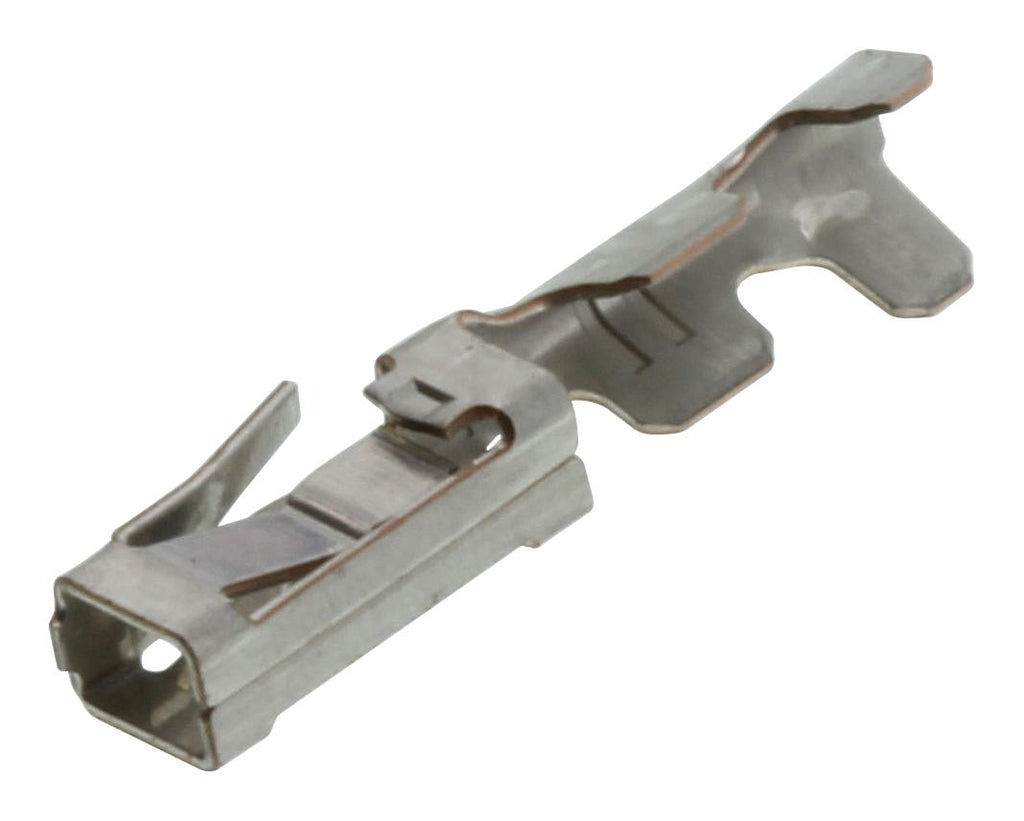

AMP - TE CONNECTIVITY - 182198-1 - Contact, AMPMODU, Socket, Crimp, AMPMODU Connectors, 18 AWG, 22 AWG
- Product Range: AMPMODU Series
- Contact Gender: Socket
- Contact Termination Type: Crimp
- For Use With: AMPMODU Connectors
- Wire Size AWG Max: 18AWG
- Wire Size AWG Min: 22AWG
- Current Rating: 5A
- Contact Material: Phosphor Bronze
- Contact Plating: Tin Plated Contacts
- SVHC: No SVHC (15-Jan-2019)
- Cable Diameter Max: 2.3mm
- Cable Diameter Min: 1.8mm
- Contact Resistance: 12mohm
- Contact Size: 18
- Contact Termination: Crimp
- Operating Temperature Max: 60°C
- Operating Temperature Min: -65°C
- Wire Area Size Max: 0.9mm²
- Wire Area Size Min: 0.32mm²
- Wire Size: 18AWG
