Omschrijving

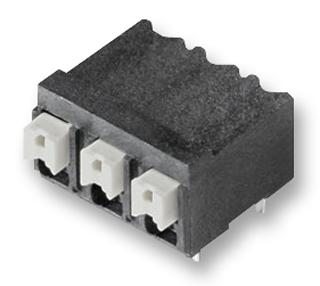

WEIDMULLER - 1869720000 - Wire-To-Board Terminal Block, 5.08 mm, 7 Ways, 24 AWG, 16 AWG, 1.5 mm², Push In
- Pitch Spacing: 5.08mm
- No. of Positions: 7Ways
- Wire Size AWG Min: 24AWG
- Wire Size AWG Max: 16AWG
- Conductor Area CSA: 1.5mm²
- Wire Connection Method: Push In
- Rated Current: 17.5A
- Rated Voltage: 500V
- Block Orientation: Through Hole Right Angle
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Colour: Black
- Connector Mounting: PCB Mount
- Connector Type: Terminal Block, PCB
- Contact Material: Copper
- Contact Plating: Tin Plated Contacts
- Flammability Rating: UL94V-0
- Voltage Rating VAC: 500V
- Wire Area Size Max: 1.5mm²
- Wire Area Size Min: 0.25mm²
