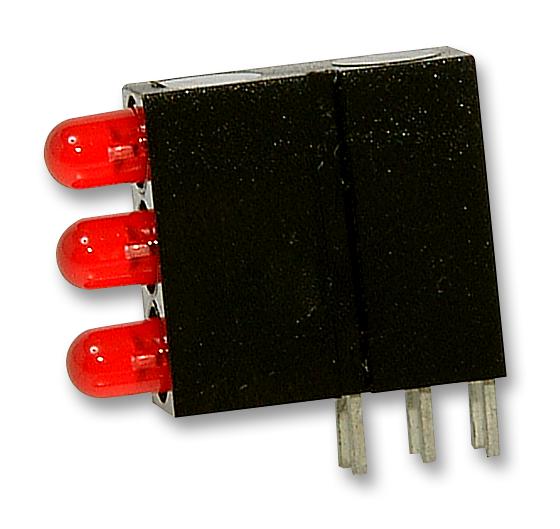

MENTOR - 1882.2221 - Circuit Board Indicator, Red, 3 LEDs, Through Hole, T-1 (3mm), 20 mA, 3 mcd
- LED Colour: Red
- No. of LEDs: 3LEDs
- LED Mounting: Through Hole
- Bulb Size: T-1 (3mm)
- Forward Current If: 20mA
- Luminous Intensity: 3mcd
- Forward Voltage: 2.25V
- Viewing Angle: 60°
- Height: 12mm
- Width: 4.95mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Current If Luminous Intensity: 10mA
- Display Size: 4.95mm x 12mm
- External Depth: 12.5mm
- External Length / Height: 12mm
- External Width: 5.08mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2V
- LED / Lamp Size: 3mm / T-1
- LED Configuration: Array
- LED Type: Standard
- Lead Cross-section Depth: 0.5mm
- Lead Cross-section Width: 0.5mm
- Lead Length: 3.2mm
- Lead Spacing: 2.54mm
- Lens Shape: Round
- Luminous Intensity @ If Max: 5mcd
- Luminous Intensity @ If Min: 2mcd
- Luminous Intensity Typ: 5mcd
- No. of Pins: 6Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- PIV Max: 5V
- Peak Forward Current: 25mA
- Peak Wavelength: 700nm
- Pitch Spacing: 3.87mm
- Voltage Vf Typ: 2V
