Omschrijving

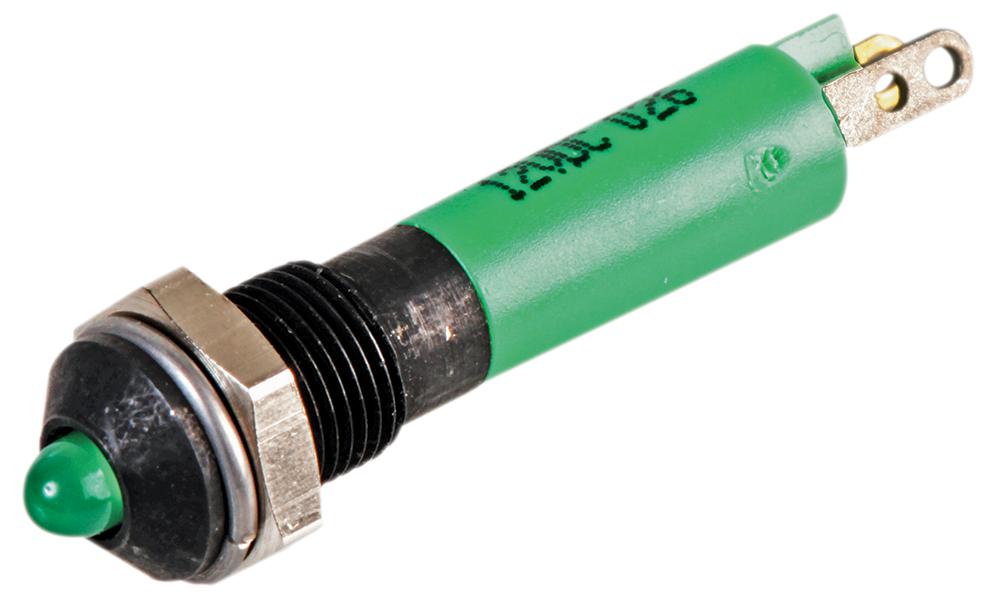

CML INNOVATIVE TECHNOLOGIES - 19021251 - LED Panel Mount Indicator, Black Chrome Bezel, Green, 12 VDC, 6 mm, 20 mA, 8 mcd, IP40
- LED Colour: Green
- Operating Voltage: 12VDC
- Mounting Hole Dia: 6mm
- Forward Current If: 20mA
- Luminous Intensity: 8mcd
- IP / NEMA Rating: IP40
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CE
- Bezel Diameter: 7mm
- Bulb Size: 3mm
- Current If Luminous Intensity: 30mA
- External Diameter: 7mm
- Fixing Hole Diameter: 6mm
- Forward Current If Max: 20mA
- Forward Voltage: 12V
- Forward Voltage VF Max: 12V
- LED / Lamp Size: 3mm
- Length Behind Bezel: 28.9mm
- Luminous Intensity Typ: 48mcd
- Operating Temperature Max: 70°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +70°C
- PIV Max: 5V
- Peak Forward Current: 30mA
- Peak Wavelength: 565nm
- Supply Voltage: 12V
- Thread Pitch: 0.75mm
- Thread Size: M6
- Voltage Rating V DC: 12V
- Voltage Vf Typ: 12V
- Wavelength Typ: 565nm
