19041253 LED Indicator, 12V, He-Red CML Innovative Technologies

CML INNOVATIVE TECHNOLOGIESSKU:19041253 Bestelcode:1105290

Prijs:
Actie prijs€7,69

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (73 units)

Documenten en downloads

Omschrijving

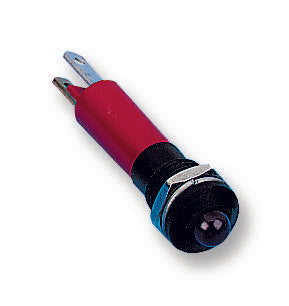

CML INNOVATIVE TECHNOLOGIES - 19041253 - LED Panel Mount Indicator, Black Chrome Bezel, Red, 12 VDC, 8 mm, 20 mA, 80 mcd, IP67

  • LED Colour: Red
  • Operating Voltage: 12VDC
  • Mounting Hole Dia: 8mm
  • Forward Current If: 20mA
  • Luminous Intensity: 80mcd
  • IP / NEMA Rating: IP67
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: CE
  • Bezel Diameter: 7mm
  • Body Plating: Black Chrome
  • Bulb Size: 5mm
  • External Diameter: 9.5mm
  • Fixing Hole Diameter: 8mm
  • Forward Current If Max: 20mA
  • Forward Voltage: 12V
  • Forward Voltage VF Max: 12V
  • LED / Lamp Size: 5mm
  • Length Behind Bezel: 35mm
  • Lens Shape: Dome
  • Luminous Intensity Typ: 30mcd
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Range: -25°C to +70°C
  • Operating Voltage Max: 12VDC
  • Operating Voltage Tolerance +: 10%
  • Operating Voltage Tolerance -: 10%
  • PIV Max: 5V
  • Peak Forward Current: 30mA
  • Peak Wavelength: 660nm
  • Thread Pitch: 0.75mm
  • Thread Size: M8
  • Voltage Rating V DC: 12V
  • Voltage Vf Typ: 12VDC
  • Wavelength Typ: 660nm
