Omschrijving

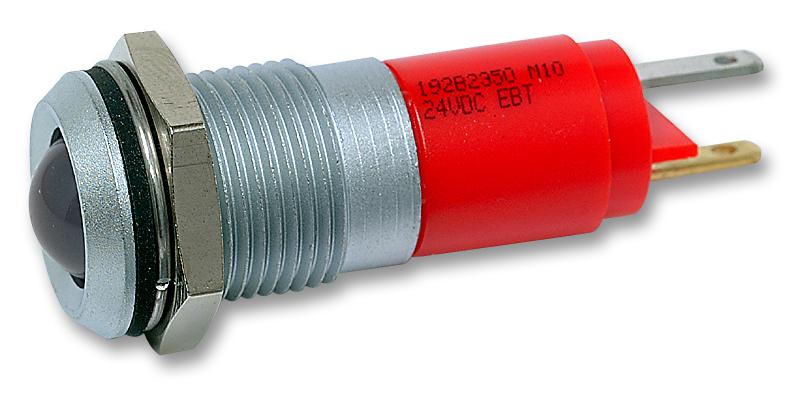

CML INNOVATIVE TECHNOLOGIES - 192B2350 - LED Panel Mount Indicator, Matt Chrome Bezel, Red, 24 V, 14 mm, 17 mA, 60 mcd, IP67
- LED Colour: Red
- Operating Voltage: 24V
- Mounting Hole Dia: 14mm
- Forward Current If: 17mA
- Luminous Intensity: 60mcd
- IP / NEMA Rating: IP67
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Bezel Diameter: 16mm
- Bulb Size: 10mm
- External Diameter: 16mm
- Fixing Hole Diameter: 14.5mm
- Forward Current If Max: 17mA
- Forward Voltage: 24V
- Forward Voltage VF Max: 24V
- LED / Lamp Size: 10mm
- LED Colour Presentation: White diffused
- Length Behind Bezel: 41mm
- Luminous Intensity Typ: 60mcd
- Material: Brass
- Operating Current DC: 17mA
- Operating Temperature Max: 50°C
- Operating Temperature Min: -20°C
- Operating Temperature Range: -20°C to +50°C
- Peak Wavelength: 660nm
- Reverse Protection Voltage: 80V
- Supply Voltage V DC: 24V
- Thread Pitch: 1mm
- Thread Size: M14
- Voltage Rating V DC: 24V
- Voltage Vf Typ: 24V
- Wavelength Typ: 660nm
