19N403L63 Microswitch, v4, Long Lever ITW Switches

ITW SWITCHESSKU:19N403L63 Bestelcode:624688

Prijs:
Actie prijs€15,05

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1616 units)

Documenten en downloads

Omschrijving

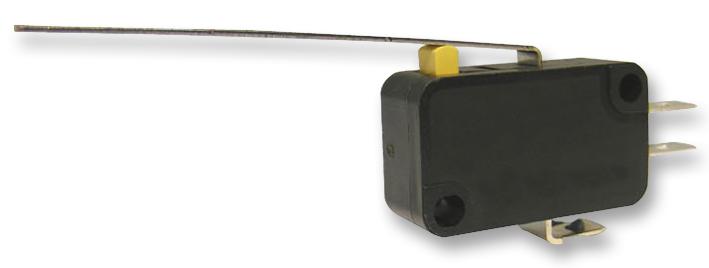

ITW SWITCHES - 19N403L63 - Microswitch, Snap Action, Long Lever, SPDT, Solder, 5 A, 28 VDC

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Long Lever
  • Contact Configuration: SPDT
  • Switch Terminals: Solder
  • Contact Current Max: 5A
  • Contact Voltage DC Nom: 28VDC
  • Product Range: 19N Series
  • Contact Voltage AC Nom: 250VAC
  • Operating Force Max: 1.5N
  • SVHC: No SVHC (17-Dec-2015)
  • Actuation Type: Long Lever
  • Actuator Type: Long Lever
  • Approval Bodies: BEAB, VDE
  • Contact Current AC: 5A
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 3A
  • Contact Current Rating: 5A
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 28V
  • Differential Travel Max: 6.35mm
  • External Depth: 6.35mm
  • External Length / Height: 11.1mm
  • External Width: 19.9mm
  • Fixing Centres: 9.53mm
  • Flammability Rating: UL94V-0
  • IP / NEMA Rating: IP67
  • Lever Length: 63mm
  • No. of Electrical Operations: 100000
  • No. of Mechanical Operations: 10000000
  • Operating Force: 0.15N
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Pre-travel: 21mm
  • Release Force: 0.02N
  • Switch Case: Nylon 4.6 (Polyamide 4.6)
