Omschrijving

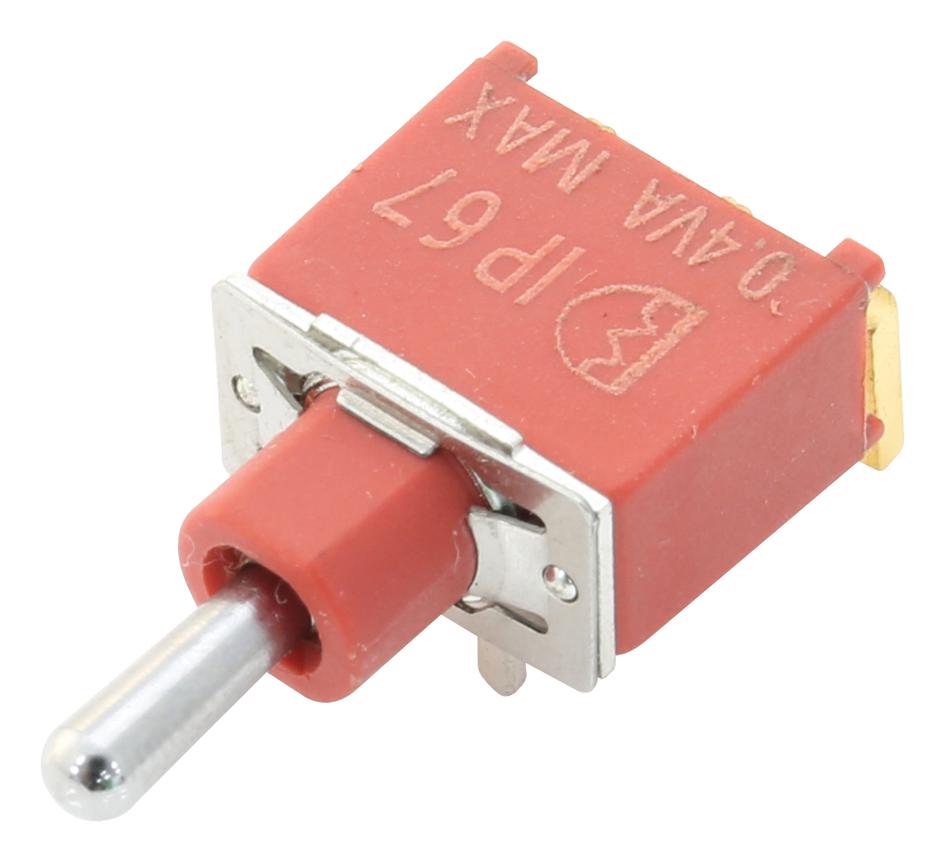

MULTICOMP PRO - 1AS3T2B4M6RE - Toggle Switch, On-Off-On, SPDT, Non Illuminated, 1AS, Through Hole, 100 mA
- Switch Operation: On-Off-On
- Contact Configuration: SPDT
- Illumination: Non Illuminated
- Product Range: 1AS Series
- Contact Current Max: 100mA
- Switch Mounting: Through Hole
- Contact Voltage AC Nom: 20V
- Switch Terminals: Solder
- Contact Voltage DC Nom: 20V
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Bat
- Bush Diameter: 5.97mm
- Bush Thread Length: 5.92mm
- Contact Resistance: 10mohm
- Contact Voltage AC Max: 20V
- Contact Voltage DC Max: 20V
- External Depth: 12.7mm
- External Length / Height: 6.9mm
- External Width: 12.7mm
- Flammability Rating: UL94V-0
- Height: 6.86mm
- IP / NEMA Rating: IP67
- Lever Length: 6.46mm
- No. of Electrical Operations: 30000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Switching Power Max: 0.4VA
