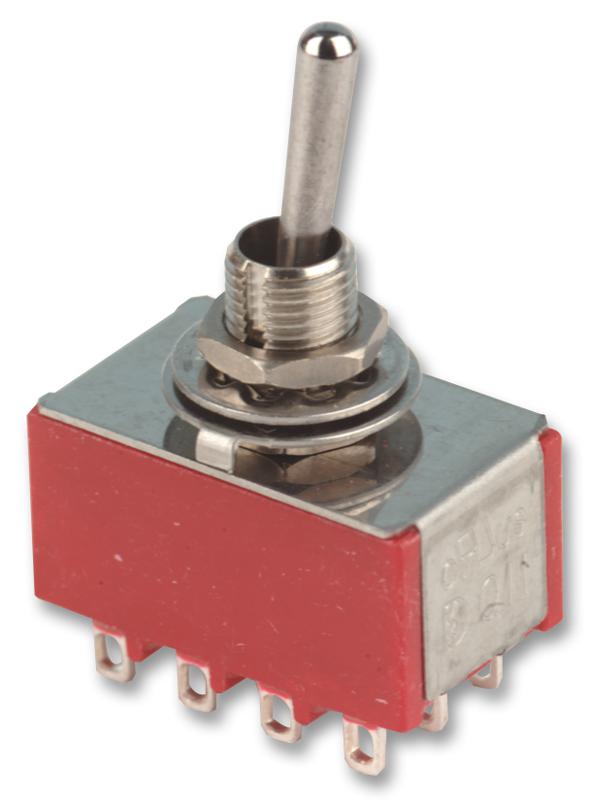

1M31T1B1M1QE Switch, 3PDT multicomp Pro

MULTICOMP PROSKU:1M31T1B1M1QE Bestelcode:9473599

Prijs:
Actie prijs€4,78

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (135 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - 1M31T1B1M1QE - Toggle Switch, On-On, 3PDT, Non Illuminated, 1M, Panel Mount, 5 A

  • Switch Operation: On-On
  • Contact Configuration: 3PDT
  • Illumination: Non Illuminated
  • Product Range: 1M Series
  • Contact Current Max: 5A
  • Switch Mounting: Panel
  • Contact Voltage AC Nom: 250V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 125V
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Bat
  • Bush Thread Length: 8.89mm
  • Contact Current @ Contact Voltage AC Max: 2A
  • Contact Current @ Contact Voltage DC Max: 5A
  • Contact Current AC Max: 2A
  • Contact Current DC Max: 5A
  • Contact Resistance: 10mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 125V
  • External Depth: 10.54mm
  • External Length / Height: 12.7mm
  • External Width: 16.51mm
  • Flammability Rating: UL94V-0
  • Height: 12.7mm
  • Lever Length: 10.41mm
  • No. of Electrical Operations: 40000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Panel Cutout Diameter: 6.35mm
  • Switching Power Max: 0.4VA
  • Tab Blade Thickness: 0.76mm
  • Thread Size: 1/4" x 40 NS
