1MD4T1B5M1QE Switch, Solder Tag, DPDT, Mom-Off-Mom multicomp Pro

MULTICOMP PROSKU:1MD4T1B5M1QE Bestelcode:1550182

Prijs:
Actie prijs€3,82

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (144 units)

Documenten en downloads

Omschrijving

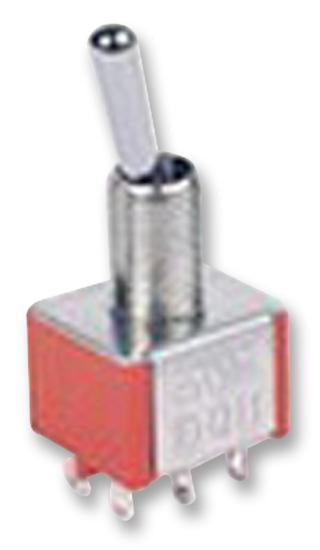

MULTICOMP PRO - 1MD4T1B5M1QE - Toggle Switch, (On)-Off-(On), DPDT, Non Illuminated, 1M, Panel Mount, 5 A

  • Switch Operation: (On)-Off-(On)
  • Contact Configuration: DPDT
  • Illumination: Non Illuminated
  • Product Range: 1M Series
  • Contact Current Max: 5A
  • Switch Mounting: Panel
  • Contact Voltage AC Nom: 120V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 28V
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Bat
  • Approval Category: UL Recognised
  • Bush Thread Length: 8.89mm
  • Contact Current AC: 2A
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Resistance: 10mohm
  • Contact Resistance Max: 100mohm
  • Contact Voltage AC Max: 250VAC
  • Contact Voltage DC Max: 28VDC
  • External Depth: 11.43mm
  • External Length / Height: 8.89mm
  • External Width: 12.7mm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Lever Length: 10.41mm
  • Material: DAP
  • No. of Mechanical Operations: 40000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Switching Current AC Max: 5A
  • Switching Current DC Max: 5A
  • Tab Blade Thickness: 0.76mm
  • Termination Method: Solder
  • Thread Size: ¼ - 40 UNS-2A
