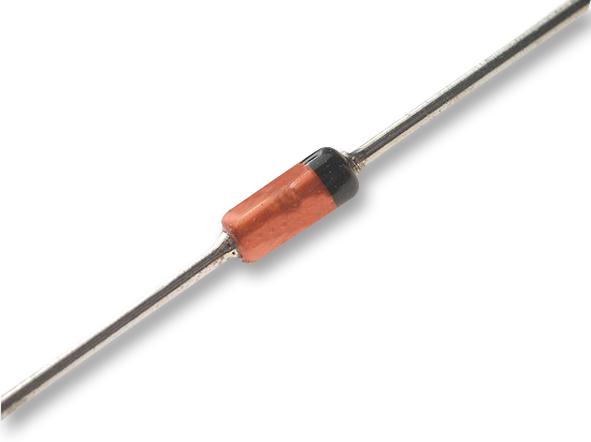

1N3595 Diode, SMALLSIGNAL, 150V, 0.2A, DO-35 ONSEMI

ONSEMISKU:1N3595 Bestelcode:2453268

Prijs:
Actie prijs€0,43

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (4108 units)

Documenten en downloads

Omschrijving

ONSEMI - 1N3595 - Small Signal Diode, Single, 150 V, 200 mA, 1 V, 3 µs, 4 A

  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 150V
  • Forward Current If(AV): 200mA
  • Forward Voltage VF Max: 1V
  • Reverse Recovery Time trr Max: 3µs
  • Forward Surge Current Ifsm Max: 4A
  • Operating Temperature Max: 175°C
  • Diode Case Style: DO-204AH
  • No. of Pins: 2Pins
  • Product Range: 1N35 Series
  • Automotive Qualification Standard: -
  • SVHC: Lead (27-Jun-2018)
  • Alternate Case Style: SOD-27
  • Current If @ Vf: 10mA
  • Current Ifsm: 1A
  • External Diameter: 1.88mm
  • External Length / Height: 3.8mm
  • Junction Temperature Tj Max: 175°C
  • Peak Forward Current: 500mA
  • Power Dissipation Ptot Max: 500mW
  • Reverse Recovery Time trr Typ: 3µs
