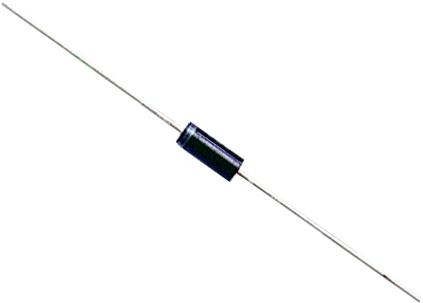

AMERICAN POWER DEVICES - 1N4001 - Standard Recovery Diode, 50 V, 1 A, Single, 1.1 V, 30 A
- Repetitive Reverse Voltage Vrrm Max: 35V
- Forward Current If(AV): 1A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.1V
- Reverse Recovery Time trr Max: -
- Forward Surge Current Ifsm Max: 30A
- Operating Temperature Max: 175°C
- Diode Case Style: DO-41 (DO-204AL)
- No. of Pins: 2Pins
- Product Range: 1N4001 Series
- Automotive Qualification Standard: -
- Current Ifsm: 30A
- Diode Type: Standard Recovery
- Junction Temperature Tj Max: 175°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +125°C
- Termination Type: Axial Leaded
