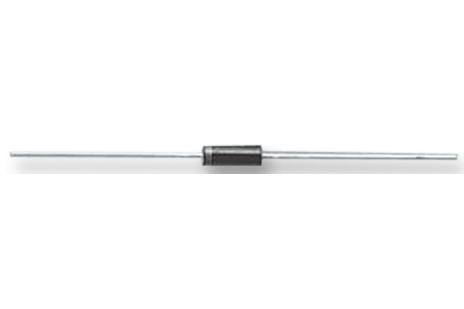

1N5817G Diode, Schottky, 1A, 20V, 95-10 ONSEMI

ONSEMISKU:1N5817G Bestelcode:1458990

Prijs:
Actie prijs€0,62

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2144 units)

Documenten en downloads

Omschrijving

ONSEMI - 1N5817G - Schottky Rectifier, General Purpose, 20 V, 1 A, Single, DO-41 (DO-204AL), 2 Pins, 450 mV

  • Repetitive Reverse Voltage Vrrm Max: 20V
  • Forward Current If(AV): 1A
  • Diode Configuration: Single
  • Diode Case Style: DO-41 (DO-204AL)
  • No. of Pins: 2Pins
  • Forward Voltage VF Max: 450mV
  • Forward Surge Current Ifsm Max: 25A
  • Operating Temperature Max: 125°C
  • Product Range: 1N5817 Series
  • Automotive Qualification Standard: -
  • SVHC: Lead (27-Jun-2018)
  • Breakdown Voltage Max: 20V
  • Current Ifsm: 25A
  • Current Ir Max: 1000µA
  • Diode Type: Schottky
  • Forward Voltage: 450mV
  • Junction Temperature Tj Max: 125°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +125°C
  • Semiconductor Technology: Si
  • Termination Type: Axial Leaded
