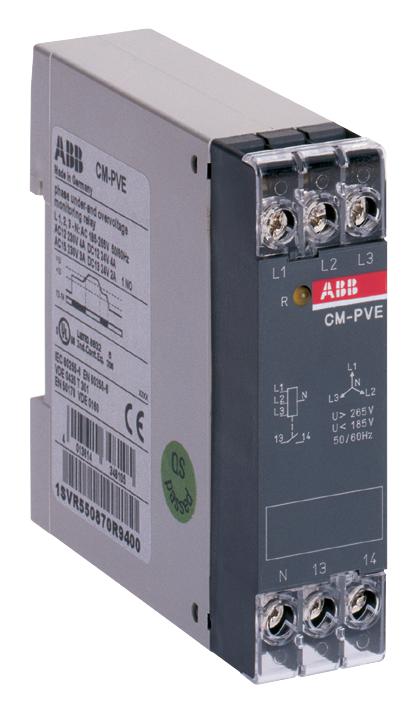

ABB - 1SVR550870R9400 - Phase Monitoring Relay, Single Function, SPDT, 5 A, DIN Rail, Screw, 300 VAC
- Product Range: -
- Contact Configuration: SPDT
- Contact Current: 5A
- Relay Mounting: DIN Rail
- Relay Terminals: Screw
- Switching Voltage Max: 300VAC
- Supply Voltage Max: 460VAC
- Phase Type: 3 Phase
- Power Consumption: -
- Phase Monitoring Range Min: 185VAC
- Phase Monitoring Range Max: 460VAC
- Approval Bodies: GOST, UL
- Approvals & Standards: UL
- Contact Current AC Max: 4A
- Contact Current DC Max: 4A
- External Depth: 78.5mm
- External Length / Height: 78mm
- External Width: 22.5mm
- IP / NEMA Rating: IP50
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
