2-406549-1. Modular, Jack, THT, R/A, LED, RJ45, 8P8C Amp - Te Connectivity

AMP - TE CONNECTIVITYSKU:2-406549-1. Bestelcode:1162483

Prijs:
Actie prijs€5,48

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1459 units)

Documenten en downloads

Omschrijving

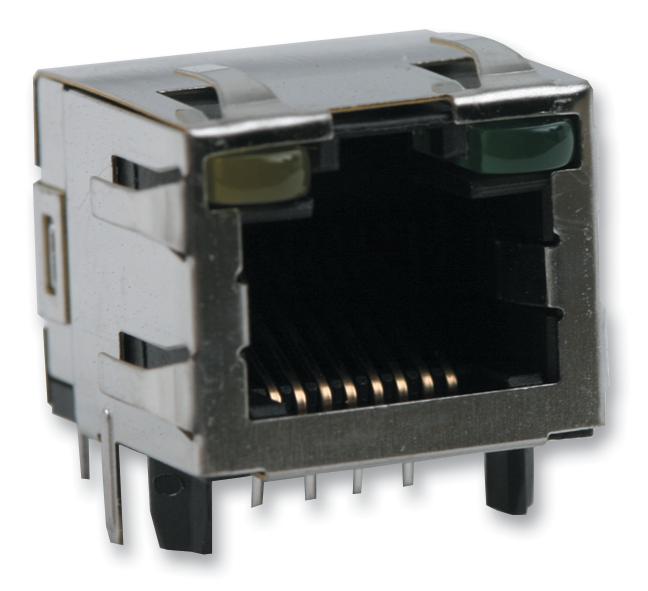

AMP - TE CONNECTIVITY - 2-406549-1. - Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat5, Through Hole Mount

  • Modular Connector Type: RJ45 Jack
  • Port Configuration: 1 x 1 Port
  • No. of Positions / Loaded Contacts (per Port): 8P8C
  • LAN Category: Cat5
  • IP Rating: -
  • Connector Mounting: Through Hole Mount
  • Connector Orientation: Right Angle
  • Shielding: Shielded
  • Magnetics: Without Magnetics
  • LEDs: With LED
  • Light Pipes: Without Light Pipe
  • Product Range: LE Series
  • SVHC: No SVHC (27-Jun-2018)
  • Case Material: Polyester (PCT)
  • Colour: Black
  • Connector Type: RJ45
  • Contact Material: Phosphor Bronze
  • Contact Plating: Gold Plated Contacts
  • Contact Termination: Through Hole Right Angle
  • Contact Termination Type: Through Hole
  • Current Rating: 1.5A
  • Flammability Rating: UL94V-0
  • Gender: Jack
  • Insulation Resistance: 500Mohm
  • Material: High Temperature Thermoplastic
  • Mechanical Life: 750 mating cycles
  • No. of Contacts: 8Contacts
  • No. of Ports: 1Ports
  • No. of Positions: 8Ways
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Standard: Cat 5
  • Voltage Rating VAC: 150V
  • Withstand Voltage: 1000VAC
