Omschrijving

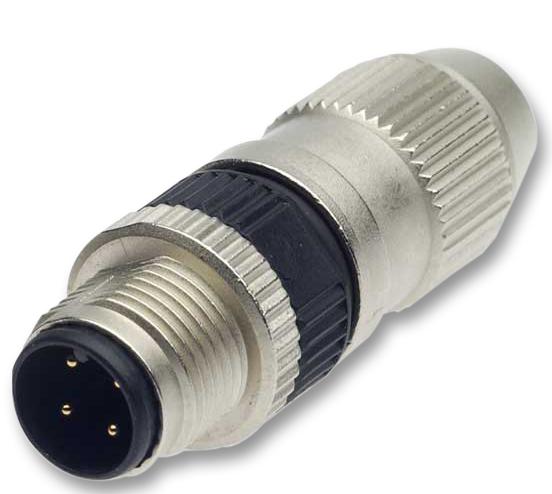

HARTING - 21 03 212 1305 - Sensor Connector, Harax Series, M12, Male, 4 Positions, IDC / IDT Pin, Straight Cable Mount
- Product Range: Harax Series
- Sensor Connector Size: M12
- Gender: Plug
- No. of Contacts: 4Contacts
- Sensor Contact Type: IDC / IDT Pin
- Sensor Connector Mounting: Straight Cable Mount
- IP / NEMA Rating: IP65, IP67
- Connector Coding: A Coded
- Connector Body Material: -
- Contact Material: Brass
- Contact Plating: Gold
- Current Rating: 6A
- Voltage Rating: 50V
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: UL
- Cable Diameter Max: 8mm
- Cable Diameter Min: 5.5mm
- Circular Connector Shell Style: Cable Mount Plug
- Circular Contact Type: Crimp Pin
- Connector Insert Type: M12-4
- Connector Mounting: Cable Mount
- Connector Shell Size: M12
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Contact Termination: Crimp
- Contact Termination Type: Crimp
- Coupling Style: Threaded
- Operating Temperature Max: +50°C
- Operating Temperature Min: -5°C
- Range: M12-L
- Wire Area Size Max: 0.75mm²
- Wire Area Size Min: 0.34mm²
- Wire Size AWG Max: 18AWG
- Wire Size AWG Min: 22AWG
- Working Voltage: 50V
