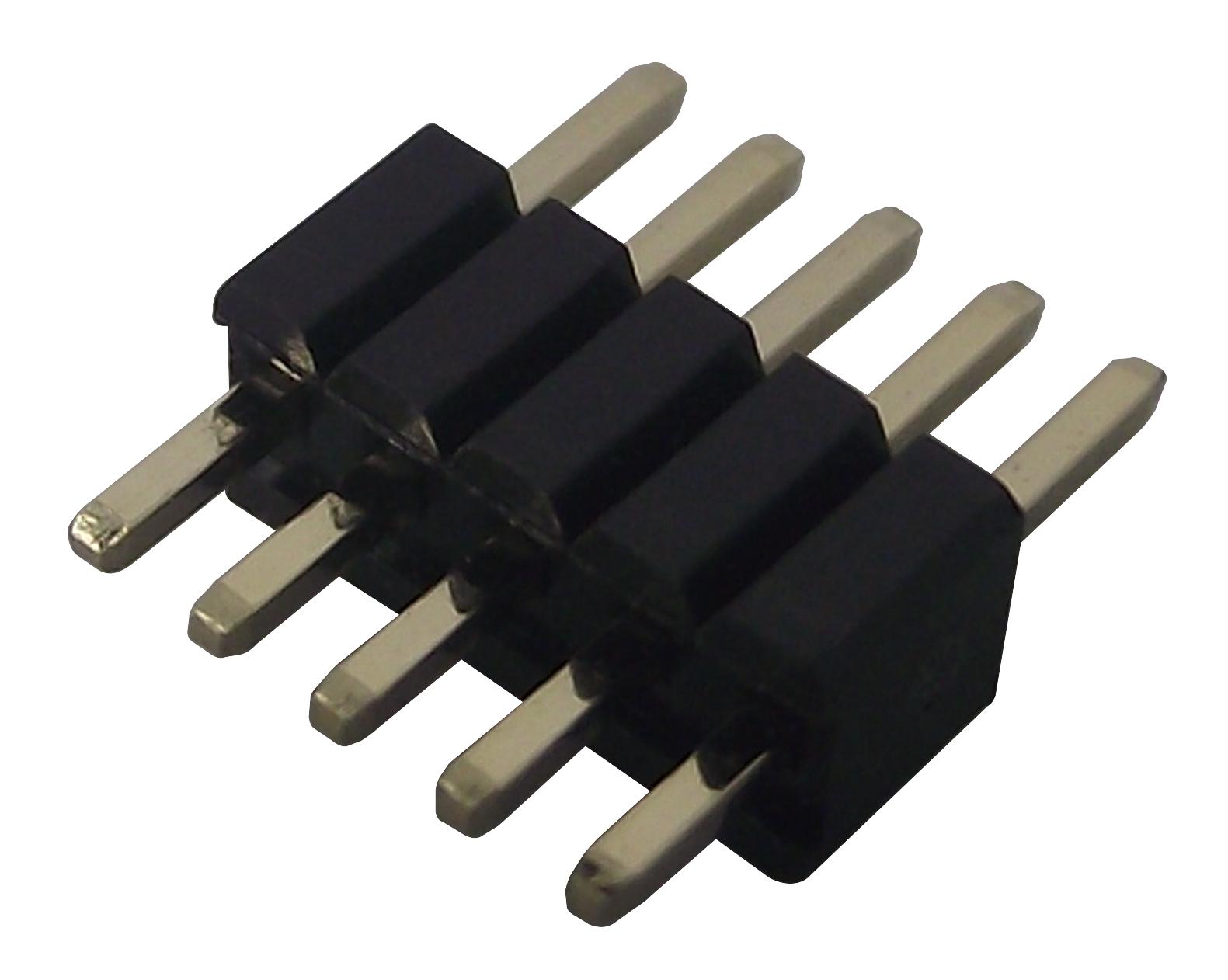

2206PA-05G-739 Header, 1 Row, Vert, 5WAY multicomp Pro

MULTICOMP PROSKU:2206PA-05G-739 Bestelcode:1577757

Prijs:
Actie prijs€0,43

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1022 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - 2206PA-05G-739 - Pin Header, Wire-to-Board, 1.27 mm, 1 Rows, 5 Contacts, Through Hole Straight, 2206PA

  • Pitch Spacing: 1.27mm
  • No. of Contacts: 5Contacts
  • Gender: Header
  • Product Range: 2206PA Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 1Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Copper Alloy
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Resistance: 20mohm
  • Current Rating: 1A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 500Mohm
  • Insulator Material: PBT (Polybutylene Terephthalate), Glass Filled
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -25°C
  • Voltage Rating VAC: 50V
  • Withstand Voltage: 500V
