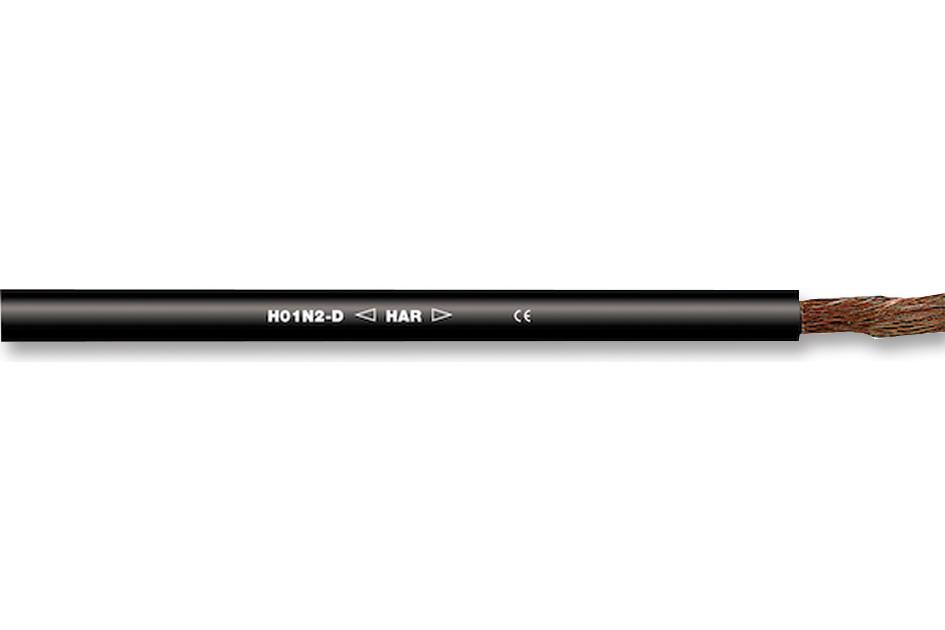

LAPP KABEL - 2210700 - Wire, Stranded, Welding, Polychloroprene, Black, 6 AWG, 16 mm², 164 ft, 50 m
- Jacket Material: Polychloroprene
- Jacket Colour: Black
- Wire Gauge: 6AWG
- Conductor Area CSA: 16mm²
- Reel Length (Imperial): 164ft
- Reel Length (Metric): 50m
- No. of Max Strands x Strand Size: 510 x 0.21mm
- Voltage Rating: 100V
- Conductor Material: Copper
- External Diameter: 11mm
- Approval Specification: -
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 510 / 0.21mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Outer Diameter: 11mm
- Outside Diameter Max: 11mm
- Outside Diameter Min: 8.8mm
- Primary Insulation Thickness: 2mm
- Test Voltage: 1000V
