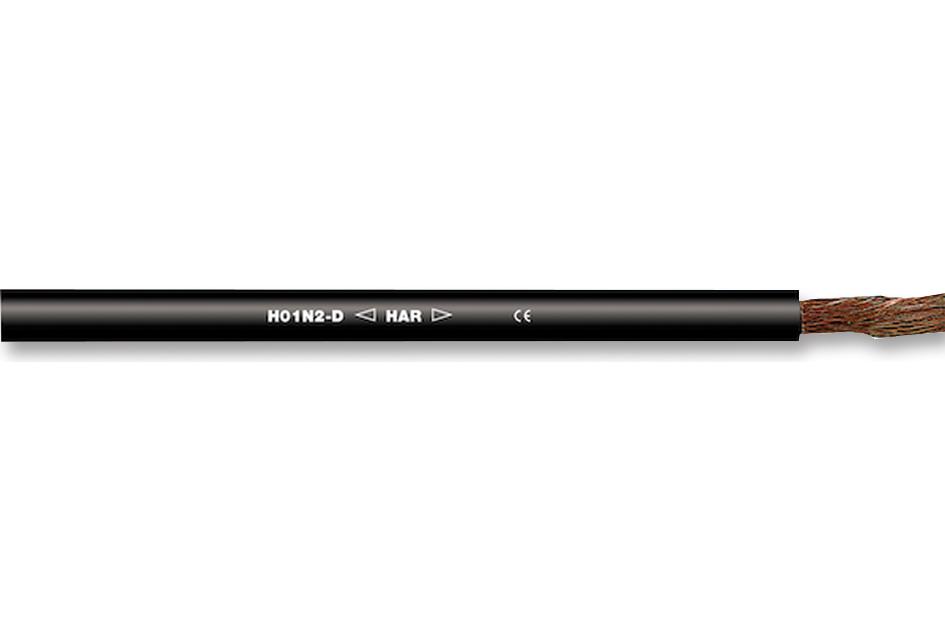

LAPP KABEL - 2210701 - Wire, Stranded, Welding, Polychloroprene, Black, 4 AWG, 25 mm², 164 ft, 50 m
- Jacket Material: Polychloroprene
- Jacket Colour: Black
- Wire Gauge: 4AWG
- Conductor Area CSA: 25mm²
- Reel Length (Imperial): 164ft
- Reel Length (Metric): 50m
- No. of Max Strands x Strand Size: 760 x 0.21mm
- Voltage Rating: 100V
- Conductor Material: Copper
- External Diameter: 12.7mm
- Approval Specification: -
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 760 / 0.21mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Outer Diameter: 12.7mm
- Outside Diameter Max: 12.7mm
- Outside Diameter Min: 10.1mm
- Primary Insulation Thickness: 2mm
- Test Voltage: 1000V
