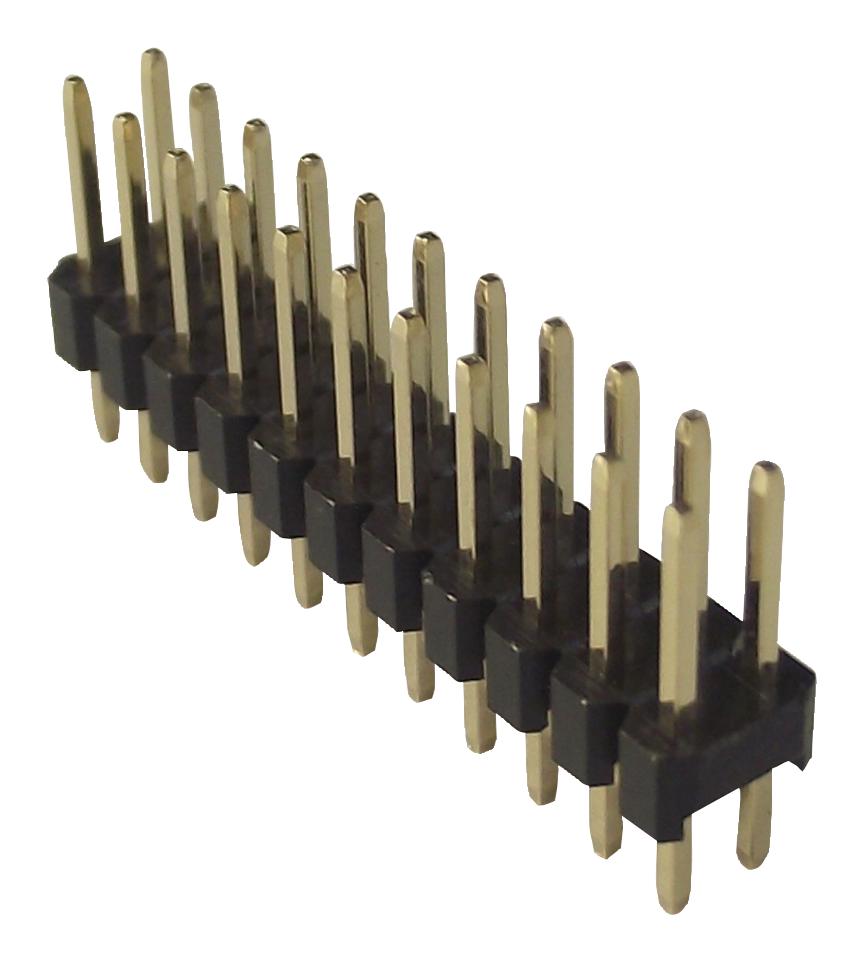

2213S-22G Header, 2 Row, Vert, 22WAY multicomp Pro

MULTICOMP PROSKU:2213S-22G Bestelcode:1593447

Prijs:
Actie prijs€0,50

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (900 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - 2213S-22G - Pin Header, Board-to-Board, 2.54 mm, 2 Rows, 22 Contacts, Through Hole Straight, 2213S

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 22Contacts
  • Gender: Header
  • Product Range: 2213S Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Copper Alloy
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Resistance: 20mohm
  • Contact Termination: Solder
  • Current Rating: 3A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Lead Spacing: 2.54mm
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Row Pitch: 2.54mm
  • Termination Method: Solder
  • Voltage Rating VAC: 250V
  • Withstand Voltage: 600V
