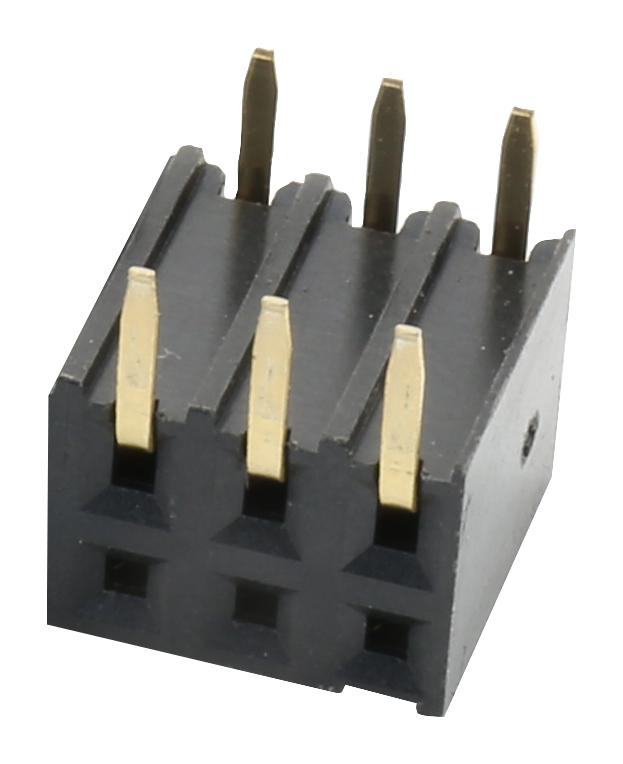

MULTICOMP PRO - 2214BR-06G - PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows, 6 Contacts, Through Hole Mount Right Angle
- Pitch Spacing: 2.54mm
- No. of Contacts: 6Contacts
- Gender: Receptacle
- Product Range: 2214BR Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Contact Resistance: 20mohm
- Contact Termination: Solder
- Current Rating: 3A
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Lead Spacing: 2.54mm
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Row Pitch: 2.54mm
- Termination Method: Solder
- Voltage Rating VAC: 250V
- Withstand Voltage: 600V
