22.32.0.230.4320 Relay, DPST-NO, 250VAC, 25A Finder

FINDERSKU:22.32.0.230.4320 Bestelcode:1889093

Prijs:
Actie prijs€45,22

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (36 units)

Documenten en downloads

Omschrijving

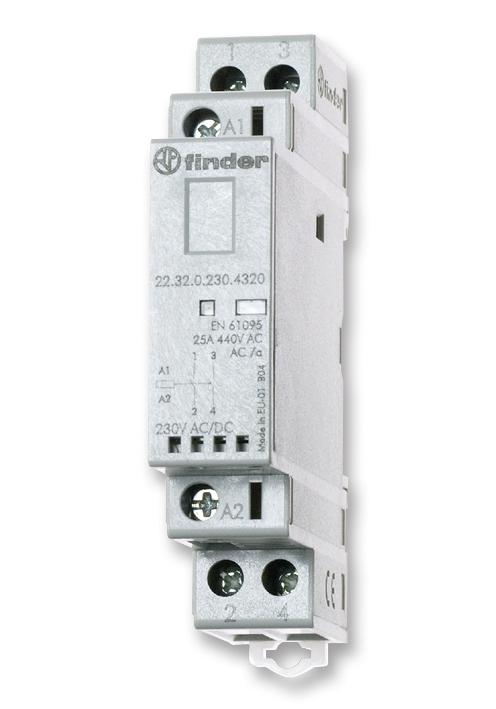

FINDER - 22.32.0.230.4320 - Contactor, DIN Rail, 250 VAC, DPST-NO, 2 Pole

  • Load Current Inductive: -
  • Relay Mounting: DIN Rail
  • Operating Voltage: 250VAC
  • Contact Configuration: DPST-NO
  • No. of Poles: 2 Pole
  • Switching Power AC3: -
  • Switching Current AC1: -
  • Coil Voltage VAC Nom: 230V
  • Coil Voltage VDC Nom: 230V
  • Switching Power AC1: 1kW
  • Load Current Resistive: 25A
  • Switching Current AC3: 10A
  • Product Range: 22 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Approvals & Standards: CE
  • Coil Voltage: 230V
  • Contact Current: 25A
  • Contact Current Max: 25A
  • Contact Material: Silver Nickel
  • Contact Voltage AC Nom: 250V
  • Contact Voltage VAC: 250V
  • External Depth: 60.8mm
  • External Height: 84mm
  • External Width: 17.5mm
  • Nom Operating Power: 2VA
  • Operating Temperature Max: 50°C
  • Operating Temperature Min: -20°C
  • Relay Terminals: Screw
  • Relay Type: Modular
  • Termination Type: Screw
