Omschrijving

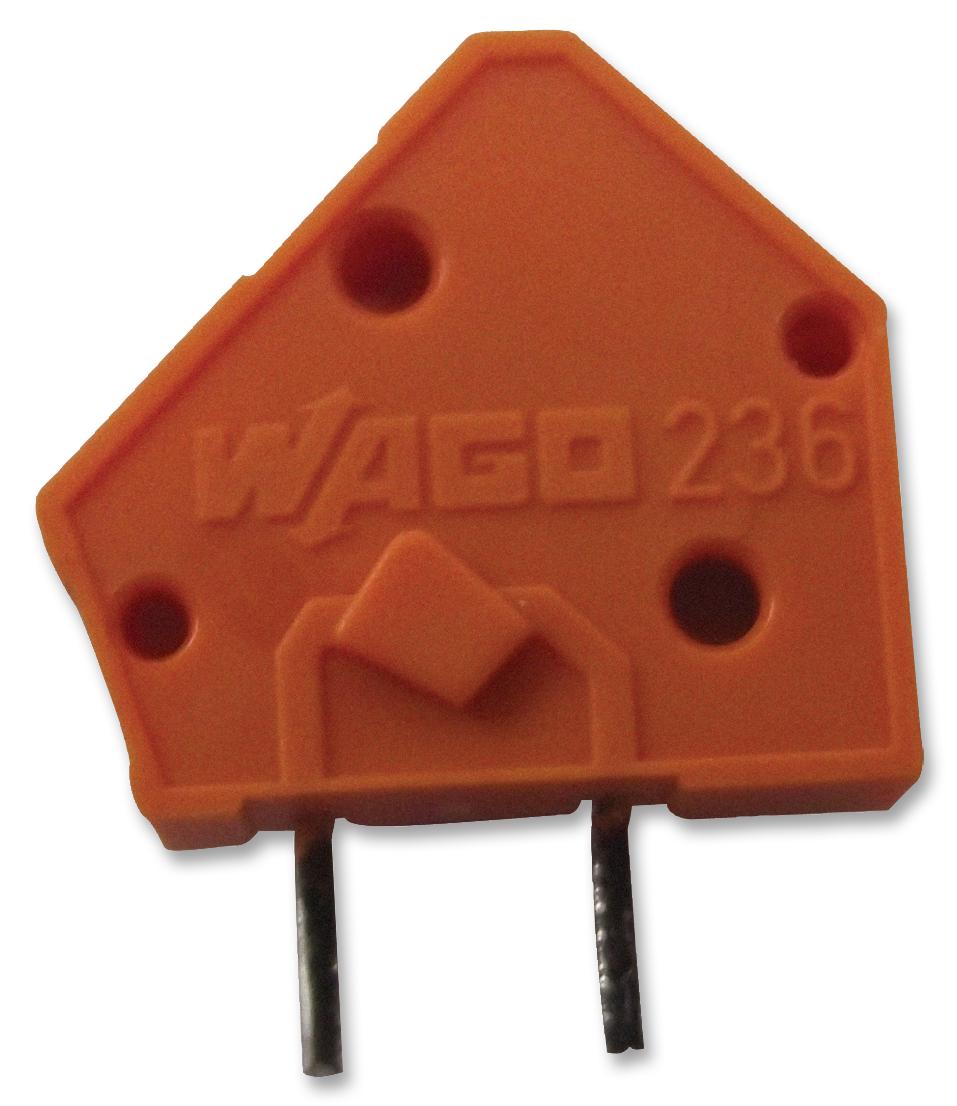

WAGO - 236-744. - Wire-To-Board Terminal Block, 5.08 mm, 1 Ways, 28 AWG, 12 AWG, 2.5 mm², Clamp
- Pitch Spacing: 5.08mm
- No. of Positions: 1Ways
- Wire Size AWG Min: 28AWG
- Wire Size AWG Max: 12AWG
- Conductor Area CSA: 2.5mm²
- Wire Connection Method: Clamp
- Rated Current: 24A
- Rated Voltage: 320V
- Block Orientation: Through Hole 45°
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Connector Mounting: PCB Mount
- Connector Type: Terminal Block
- Contact Material: Copper
- Contact Plating: Tin Plated Contacts
