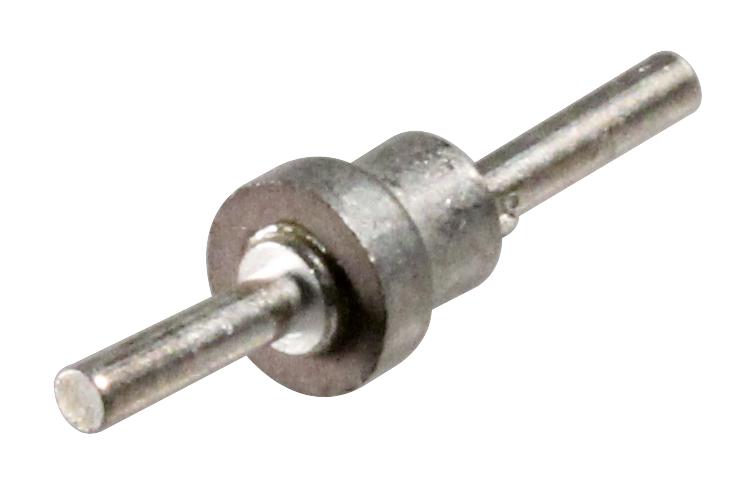

2461-001-X7V0-102AA LF Filter, Power Line, RFI, 20A TUSONIX

TUSONIXSKU:2461-001-X7V0-102AA LF Bestelcode:1305442

Prijs:
Actie prijs€12,34

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1984 units)

Documenten en downloads

Omschrijving

TUSONIX - 2461-001-X7V0-102AA LF - Power Line Filter, Chassis, General Purpose, 100 VDC, 20 A, Single Phase, 1 Stage, Through Hole

  • Current Rating: 20A
  • Voltage Rating: 100V
  • Filter Type: Feed Through
  • Filter Terminals: Through Hole
  • Inductance Min: -
  • Capacitance: 1000pF
  • Leakage Current Max: -
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Attenuation @ 100MHz: 20dB
  • Attenuation @ 10GHz: 40dB
  • Attenuation @ 10MHz: 3dB
  • Attenuation @ 1GHz: 35dB
  • Body Diameter: 4.19mm
  • External Length / Height: 4.19mm
  • Insulation Resistance: 10Gohm
  • Lead Diameter: 1.3mm
  • Lead Length: 6.35mm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Voltage Rating V DC: 100V
