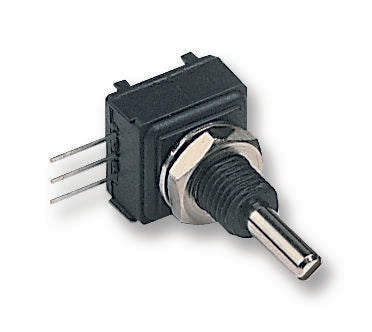

248BBHS0XB25103MA Potentiometer, 10K Vishay

VISHAYSKU:248BBHS0XB25103MA Bestelcode:9609431

Prijs:
Actie prijs€27,32

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (431 units)

Documenten en downloads

Omschrijving

VISHAY - 248BBHS0XB25103MA - Rotary Potentiometer, Conductive Plastic, 10 kohm, 1 Turns, Linear, 500 mW, ± 20%, 248

  • Track Resistance: 10kohm
  • No. of Turns: 1Turns
  • Track Taper: Linear
  • Power Rating: 500mW
  • Resistance Tolerance: ± 20%
  • Product Range: 248 Series
  • Potentiometer Mounting: Through Hole
  • Shaft Diameter: 3.18mm
  • No. of Gangs: 1
  • Adjustment Type: Screwdriver Slot
  • Shaft Length: 19.1mm
  • Electrical Angular Rotation Tolerance +: 5°
  • Electrical Angular Rotation Tolerance -: 5°
  • End Resistance: 2ohm
  • External Depth: 7.6mm
  • External Length / Height: 12.7mm
  • External Width: 12.7mm
  • Full Power Rating Temperature: 70°C
  • Insulation Resistance: 1000Mohm
  • Mechanical Angular Rotation Tolerance +: 5°
  • Mechanical Angular Rotation Tolerance -: 5°
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Proof Voltage: 750V
  • Resistance: 10kohm
  • Resistor Element Material: Conductive Plastic
  • Rotation Electrical Angle: 265°
  • Rotation Mechanical Angle: 295°
  • Temperature Coeff. +: 1000ppm/°C
  • Temperature Coeff. -: 1000ppm/°C
  • Temperature Coefficient: ± 1000ppm/°C
