Omschrijving

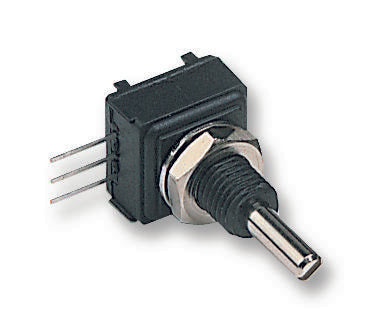

VISHAY - 248BBHS0XB25252MA - Rotary Potentiometer, Conductive Plastic, 2.5 kohm, 1 Turns, Linear, 500 mW, ± 20%, 248
- Track Resistance: 2.5kohm
- No. of Turns: 1Turns
- Track Taper: Linear
- Power Rating: 500mW
- Resistance Tolerance: ± 20%
- Product Range: 248 Series
- Potentiometer Mounting: Through Hole
- Shaft Diameter: 3.18mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 19.1mm
- Electrical Angular Rotation Tolerance +: 5°
- Electrical Angular Rotation Tolerance -: 5°
- End Resistance: 2ohm
- External Depth: 7.6mm
- External Length / Height: 12.7mm
- External Width: 12.7mm
- Full Power Rating Temperature: 70°C
- Insulation Resistance: 1000Mohm
- Mechanical Angular Rotation Tolerance +: 5°
- Mechanical Angular Rotation Tolerance -: 5°
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Proof Voltage: 750V
- Resistance: 2.5ohm
- Resistor Element Material: Conductive Plastic
- Rotation Electrical Angle: 265°
- Rotation Mechanical Angle: 295°
- Temperature Coeff. +: 1000ppm/°C
- Temperature Coeff. -: 1000ppm/°C
- Temperature Coefficient: ± 1000ppm/°C
