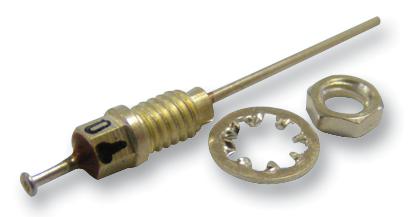

TUSONIX - 2499-003-X5U0-102PLF - Feedthrough Capacitor, Chassis, 1000 pF, 500 V, 20 A, Screw Mount, 0%, +100%
- Current Rating: 20A
- Voltage Rating: 500V
- Filter Type: Feed Through
- Filter Terminals: Wire Leaded
- Inductance Min: -
- Capacitance: 1000pF
- Leakage Current Max: -
- Product Range: 2499-003 Series
- SVHC: No SVHC (15-Jan-2018)
- External Length / Height: 11.9mm
- Lead Diameter: 1.29mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- PCB Hole Diameter: 5.4mm
- Thread Size: 12/28-NF-2A
- Voltage Rating V DC: 500V
